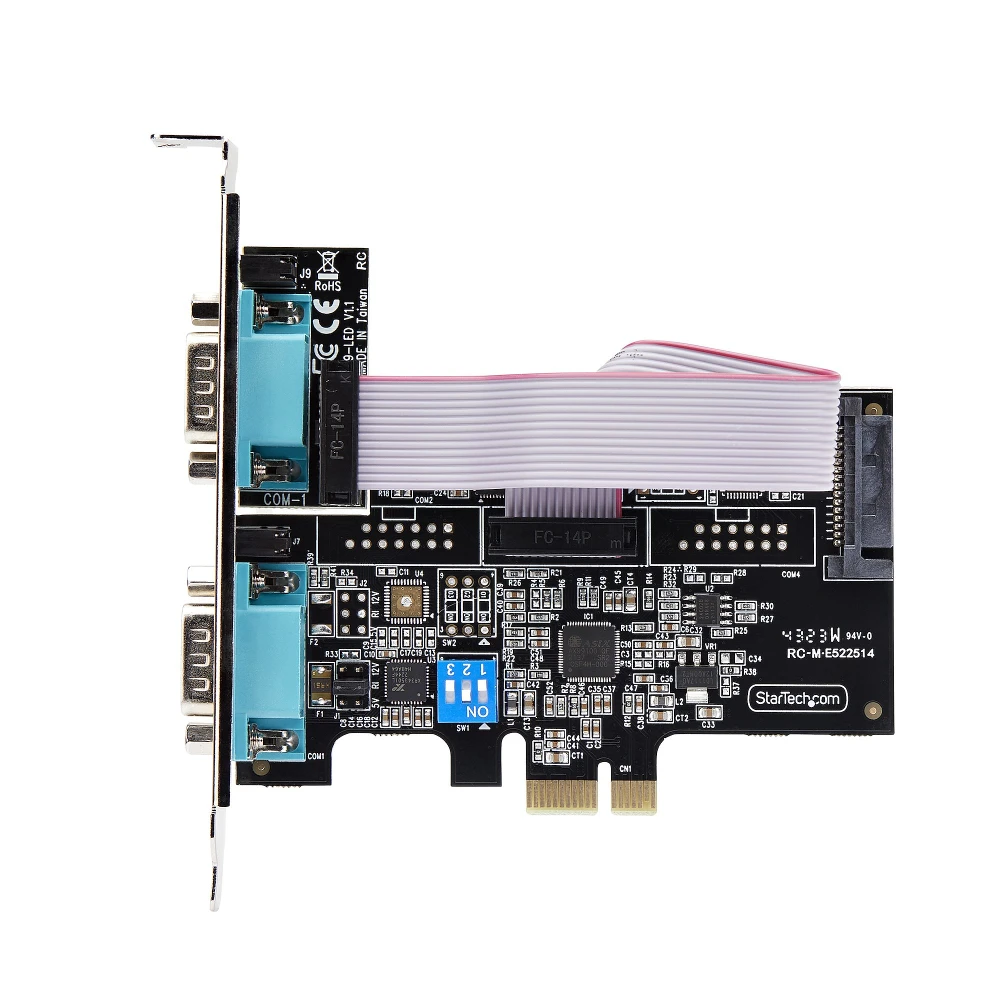

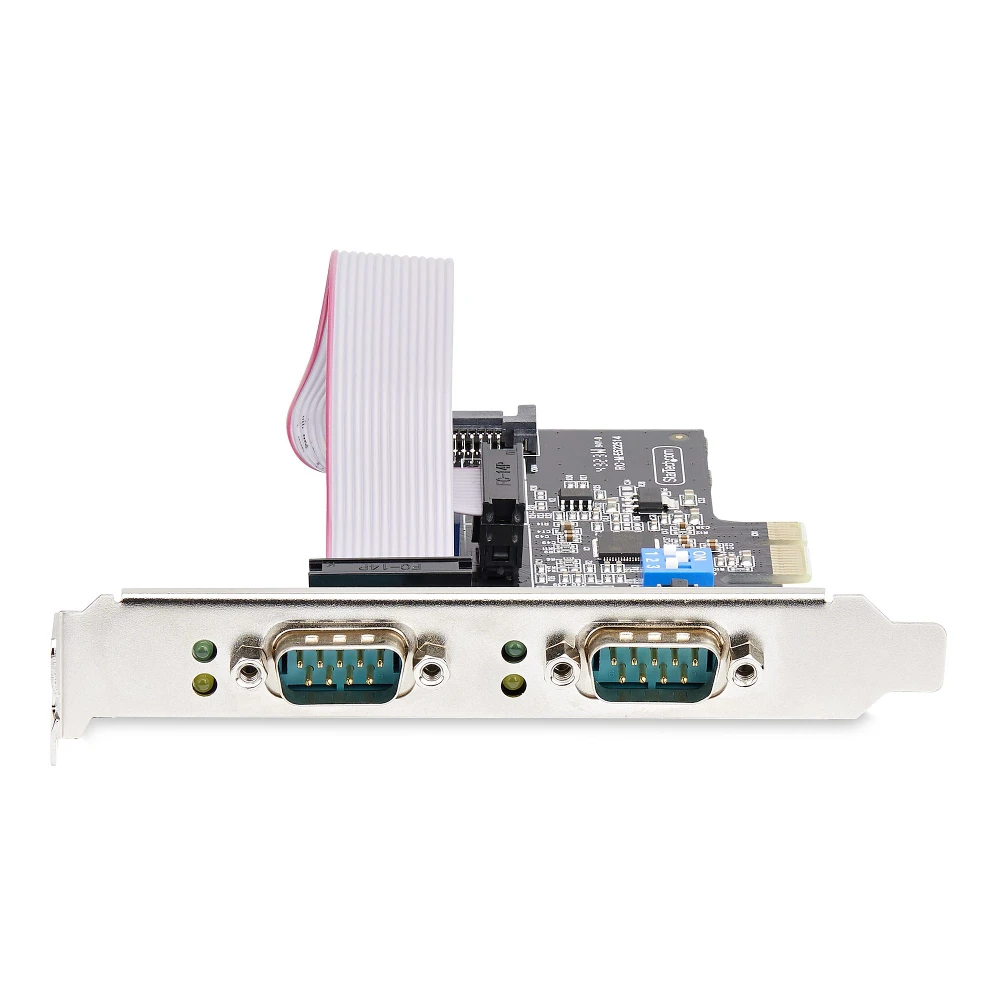

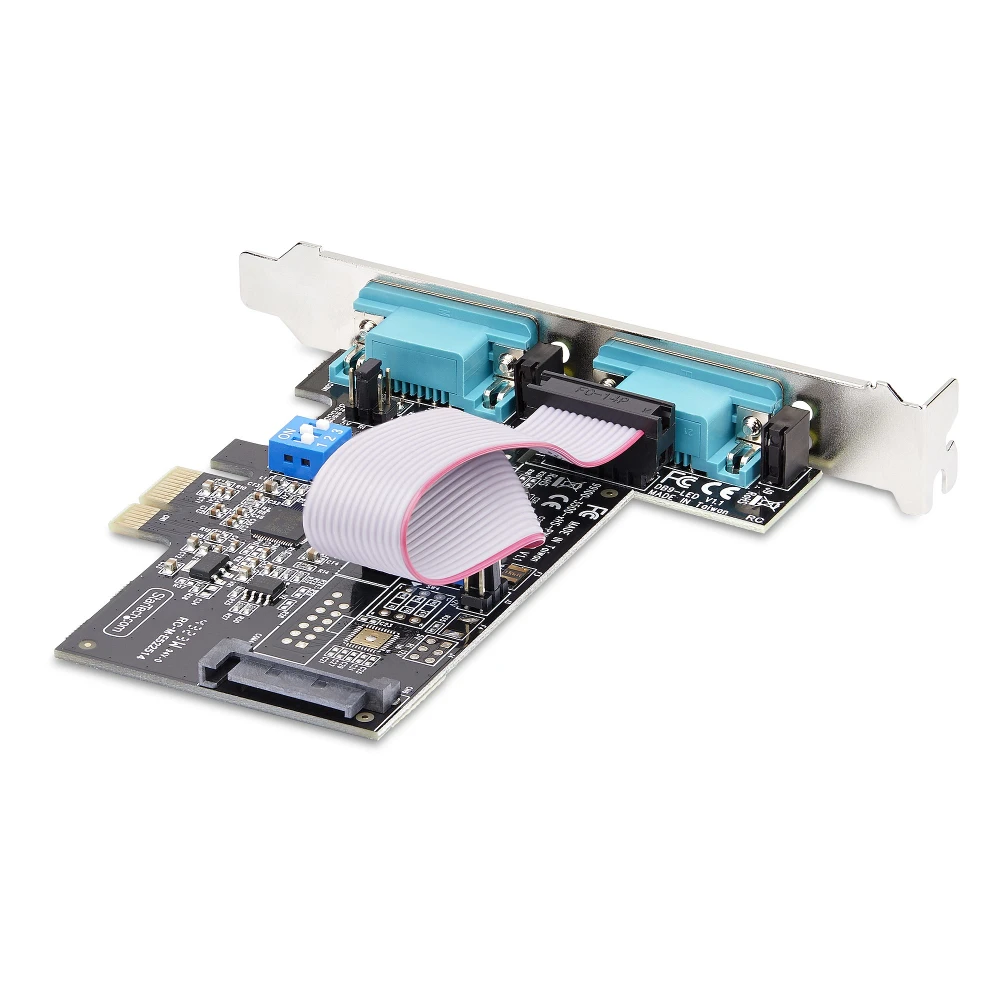

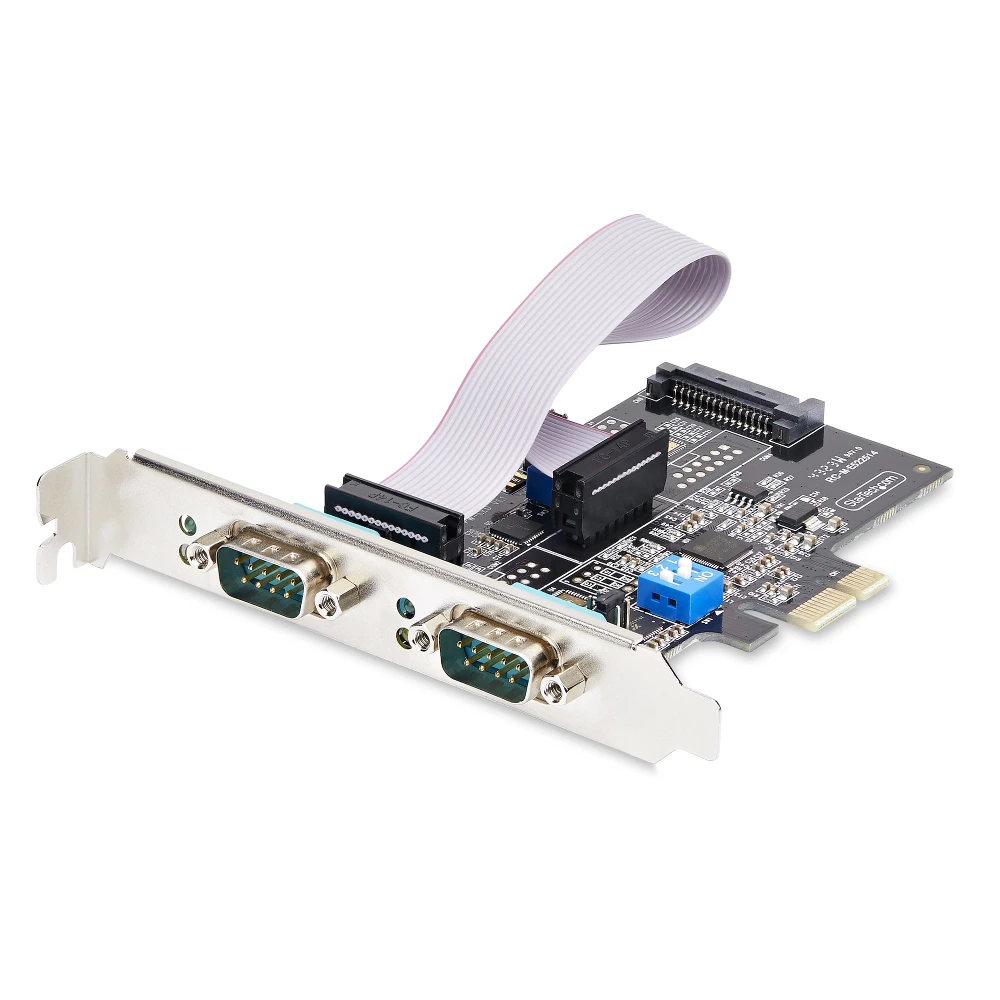

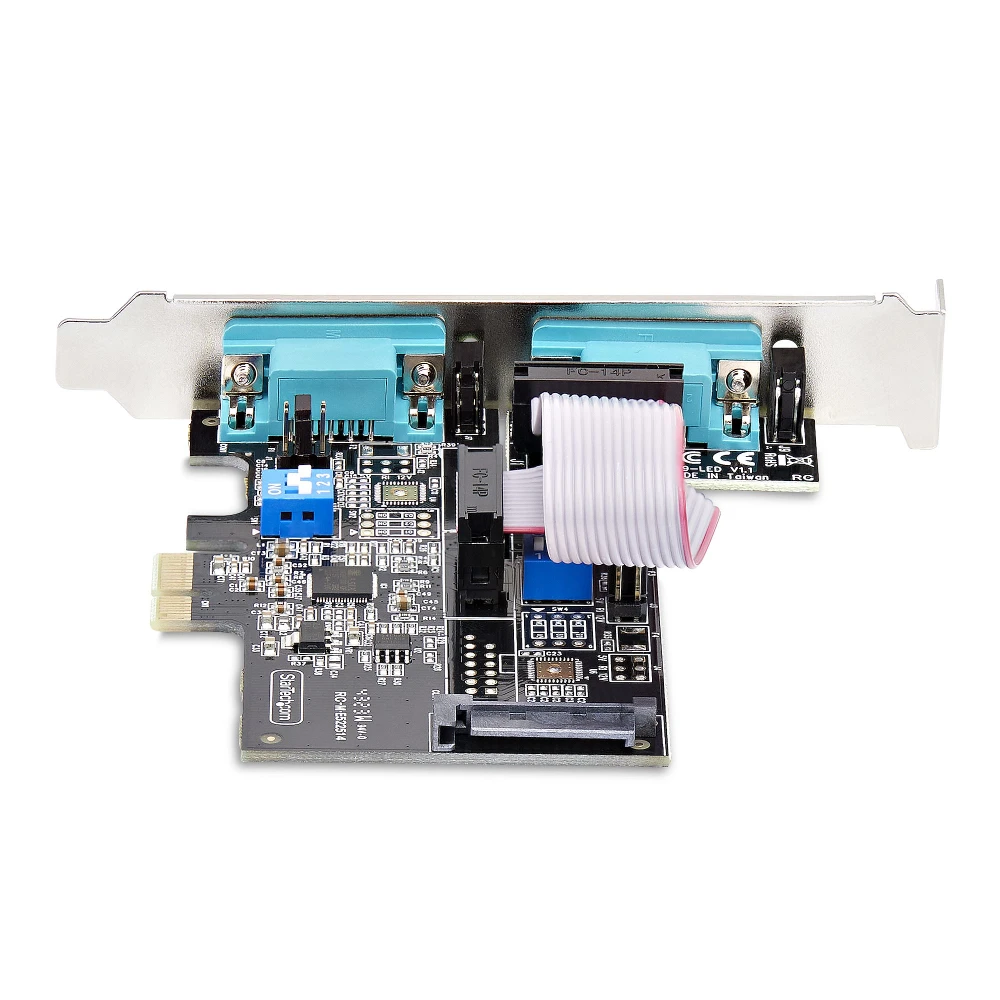

StarTech.com 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 DB9 Serial Card, Standard/Low-Profile Brackets, 16C1050 UART, ESD Protection, Windows/Linux (2S232422485-PC-CARD)
StarTech.com 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 2.0. Product colour: Black. Chipset: ASIX - AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11..., Server operating systems supported: Windows Server 2016, Windows Server 2019, Windows Server 2022. Width: 102 mm, Depth: 105 mm, Height: 16 mm

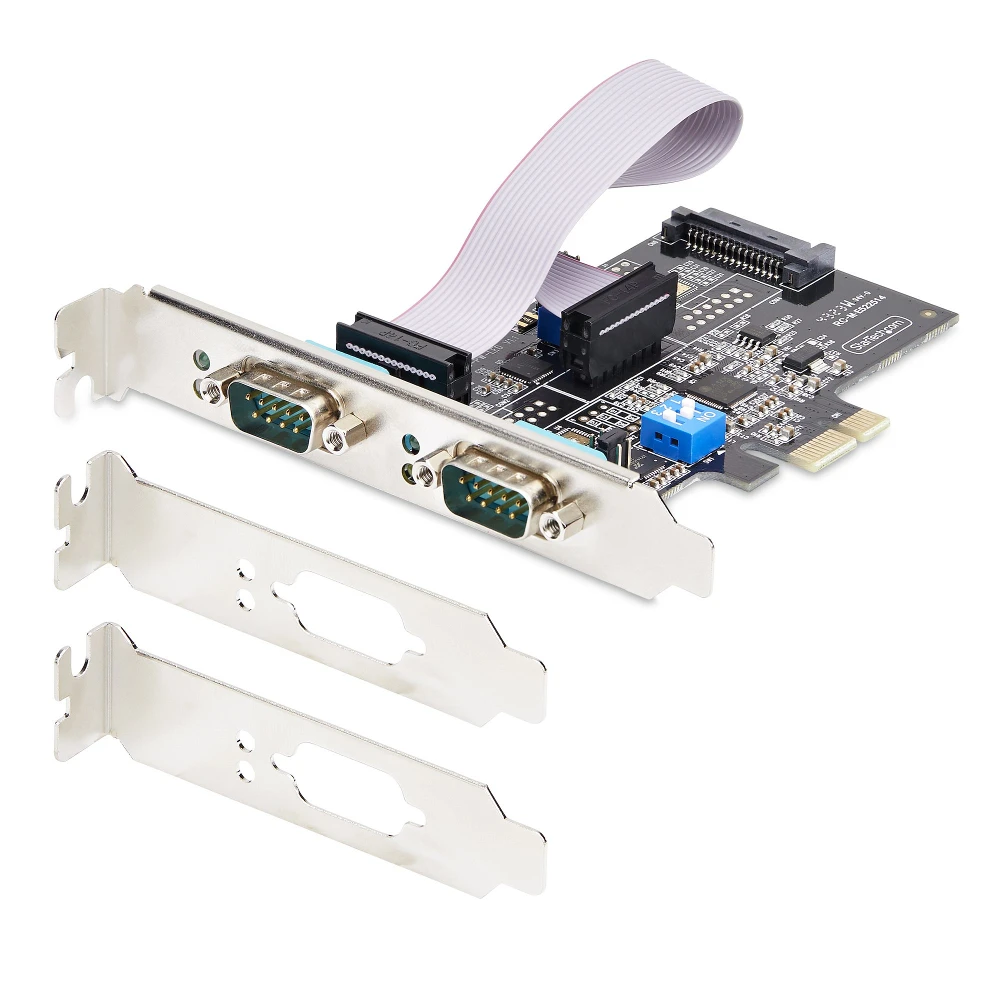

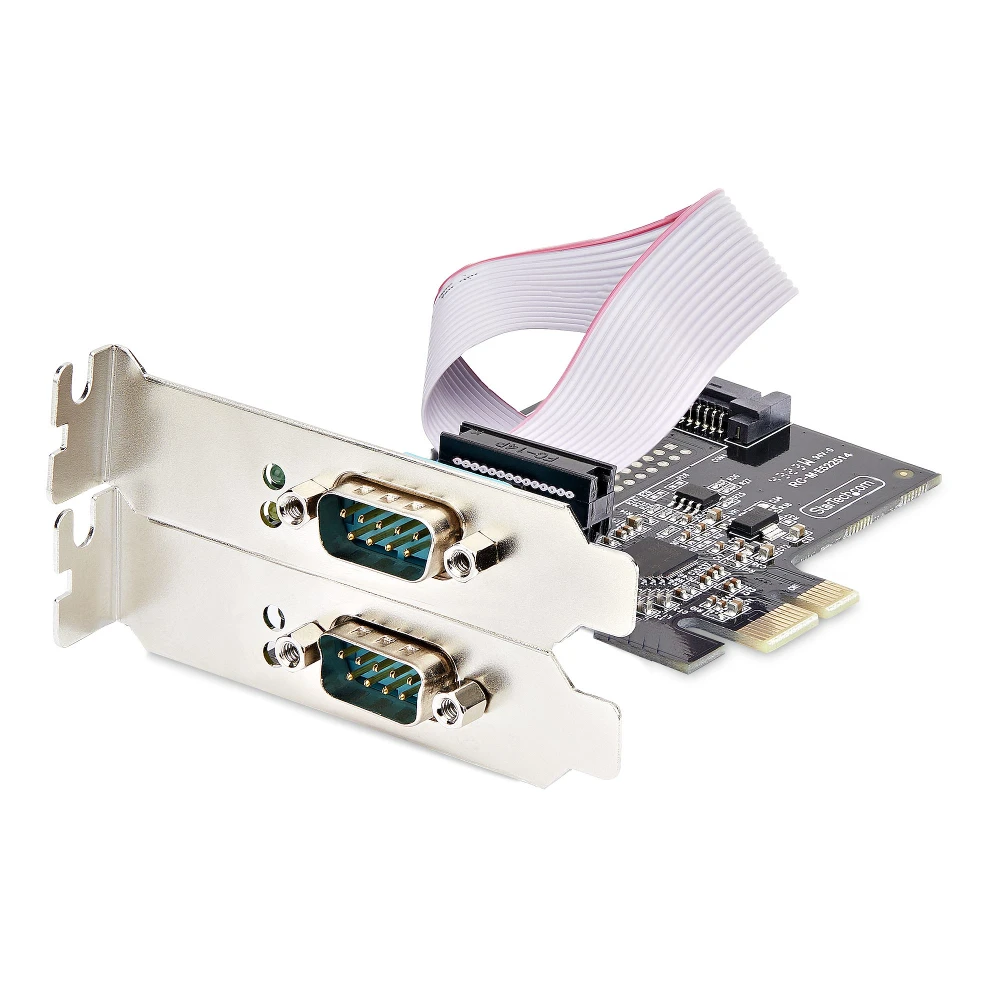

- 2-Port PCIe Serial Card features on-board DIP switches allowing each DB9 serial port to operate in RS-232/RS-422/RS-485 independently - On-board jumpers provide the option of 12V or 5V at 1.5A or the option for no power (RI); Each port can be configured individually - Standard profile bracket pre-installed with two low-profile brackets included - 16C450/16C550/16C650/16C750/16C950 UART compatible - AX99100 Chipset - Supports Windows/Linux - Max Baud Rate: 921.6Kbps; 256 Byte FIFO
Add two RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion CardAdd serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.Per-Port Serial ConfigurationThis PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.Configurable External SATA PowerThe PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.Legacy ConnectivityThis serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes).The StarTech.com Advantage
