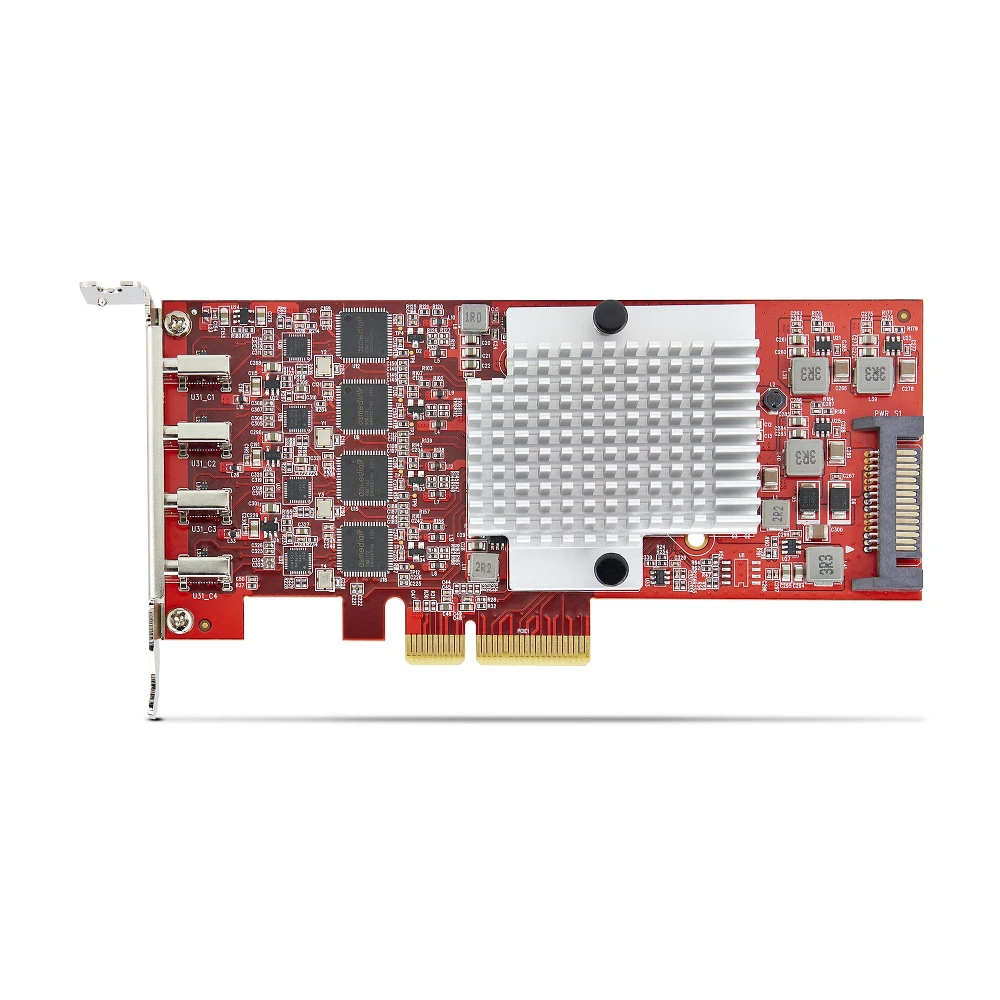

StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Card, 4x Independent USB Controllers, TAA

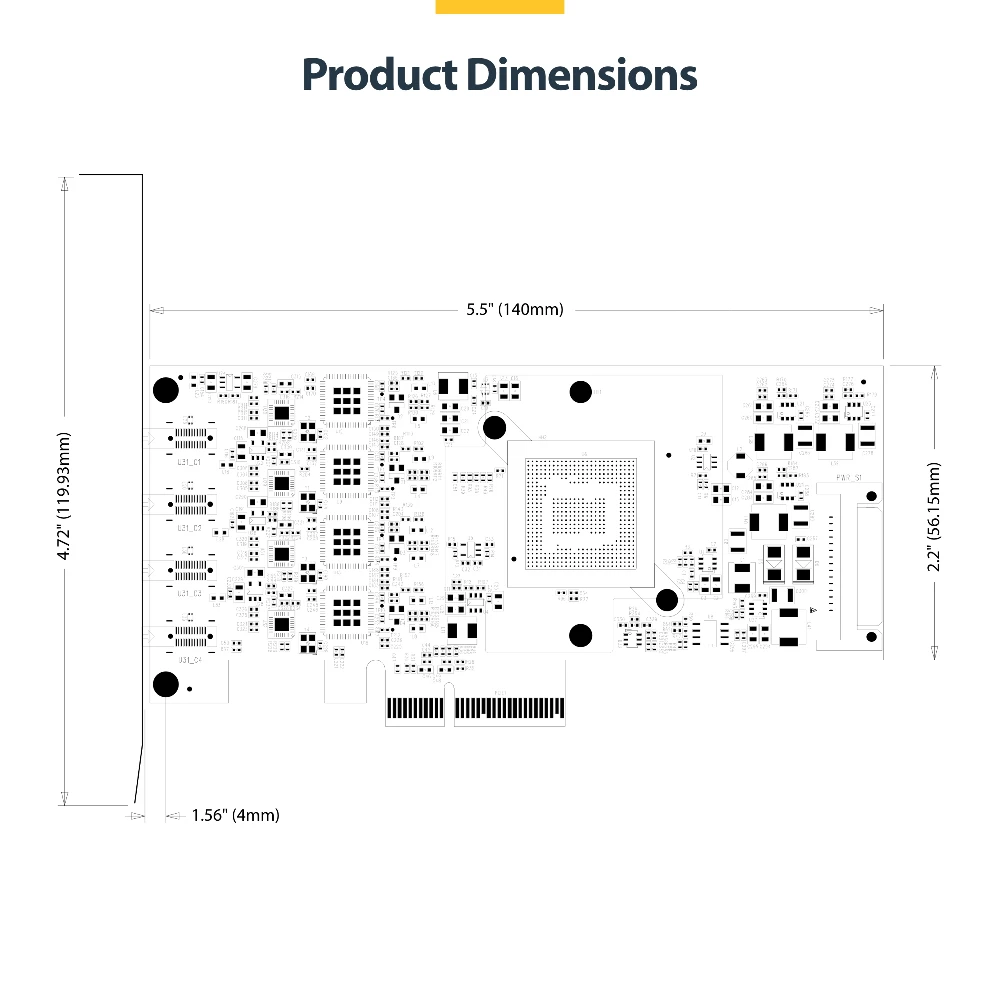

StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCI 3.0. Product colour: Red. Chipset: ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2019, Windows Server 2022. Width: 56.2 mm, Depth: 140 mm, Height: 79.2 mm
- Enhance a desktop computer/server with this 4-port USB 3.2 Gen 2 Type-C card; Features individual USB controllers for up to 10Gbps per port; PCI Express 3.0 x4 - Ideal for file transfers/real-time photo and video editing on external storage/10GbE USB network adapters - Supports Windows/Linux/macOS; PCIe USB-C card ships w/ low-profile bracket (standard included) - Supports 10/5Gbps and 480/12/1.1Mbps; If PCIe power is insufficient a built-in SATA port can supply extra power; Max 15W per port

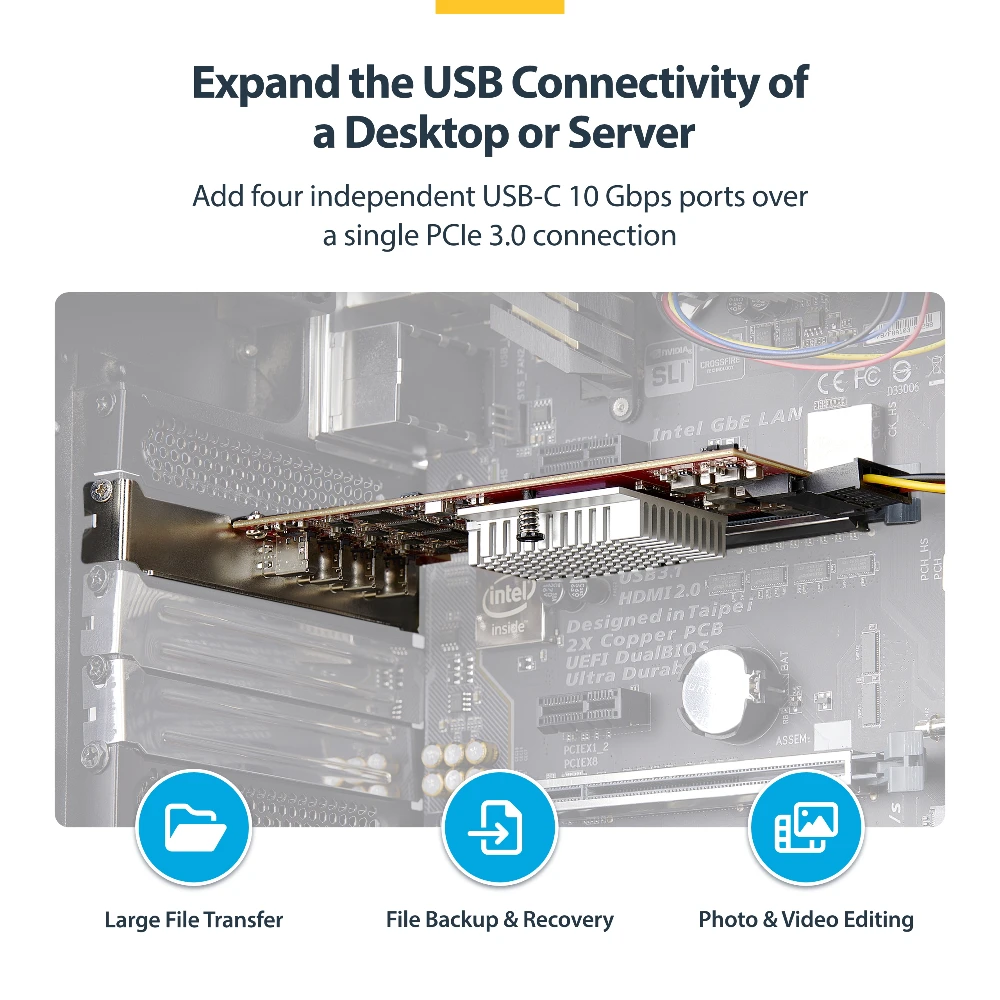

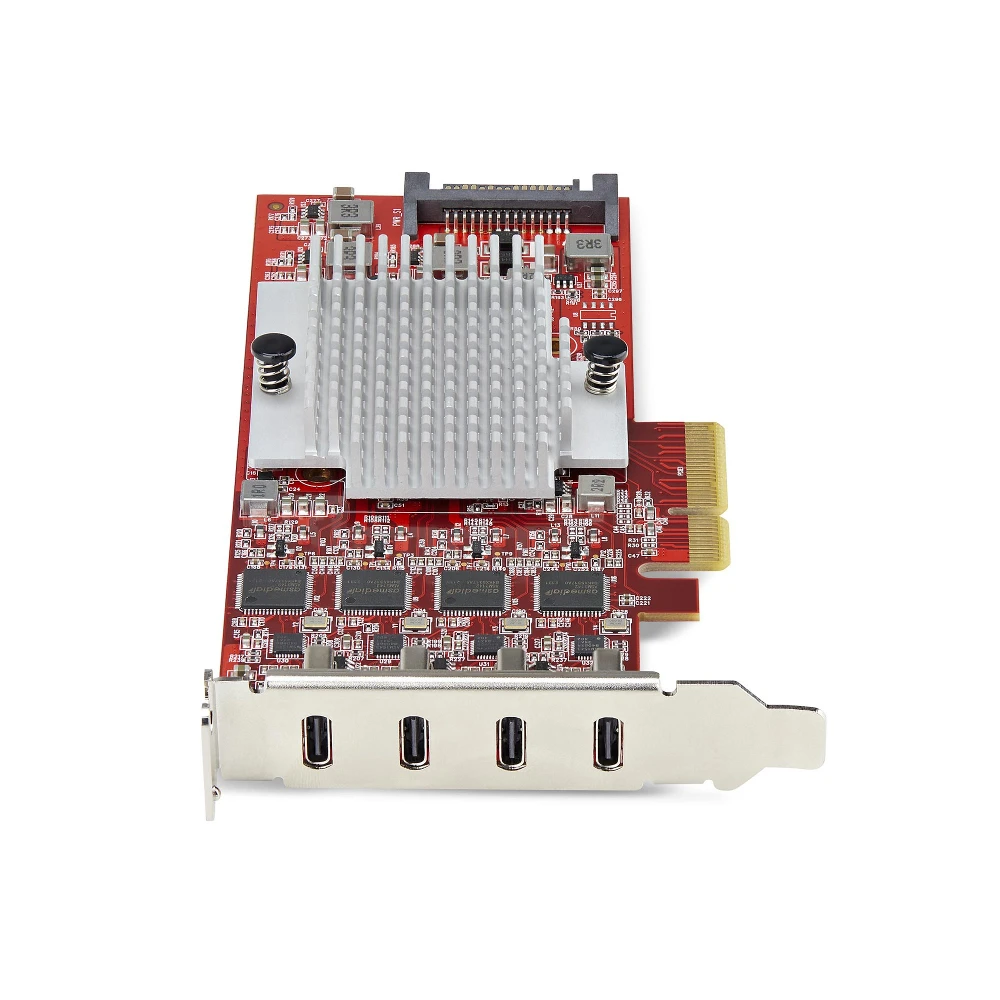

Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI Express
Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

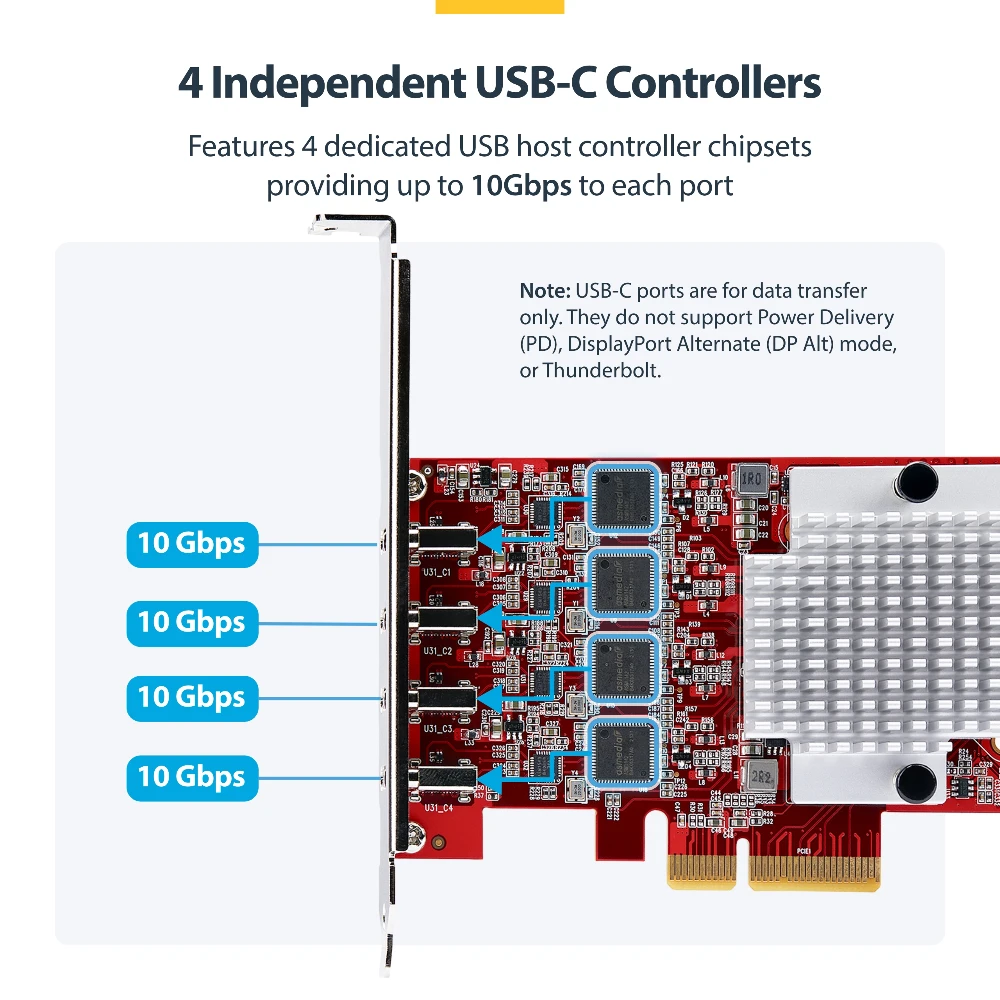

Dedicated USB Controllers
Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.

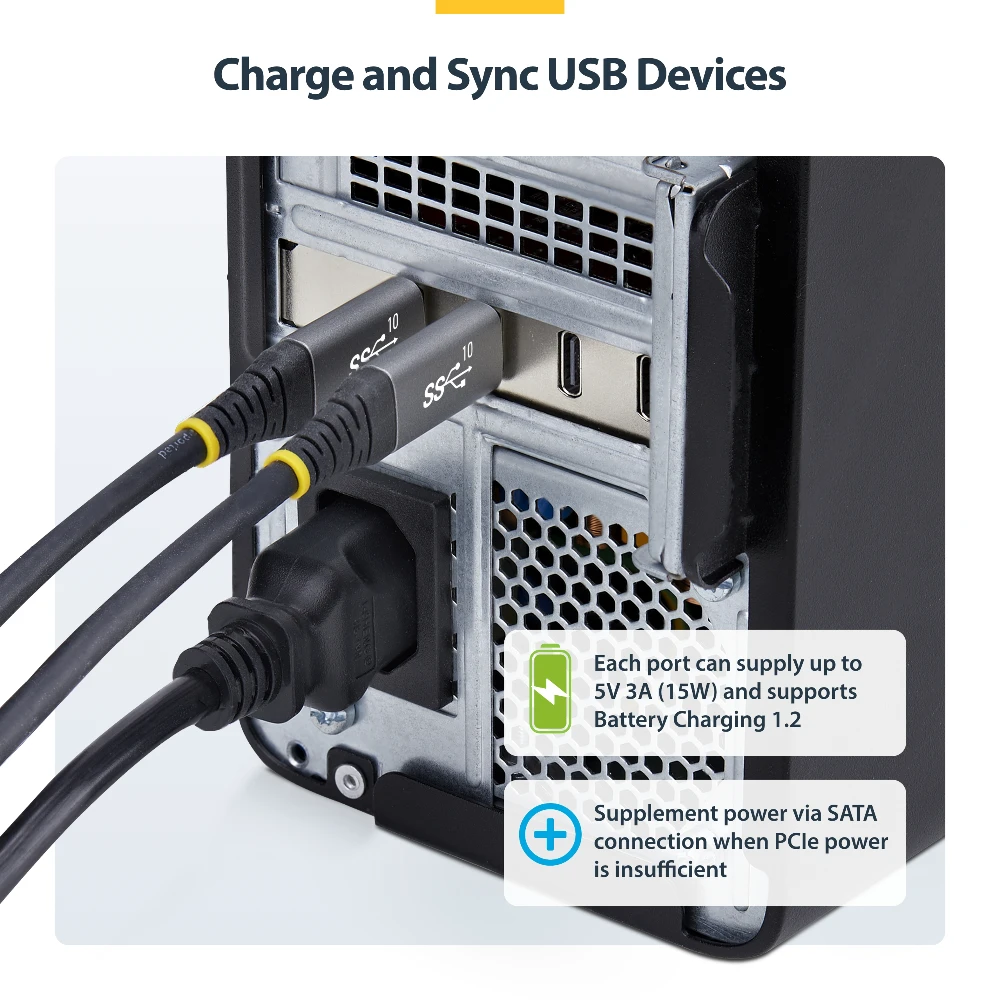

Charge and Sync USB Devices

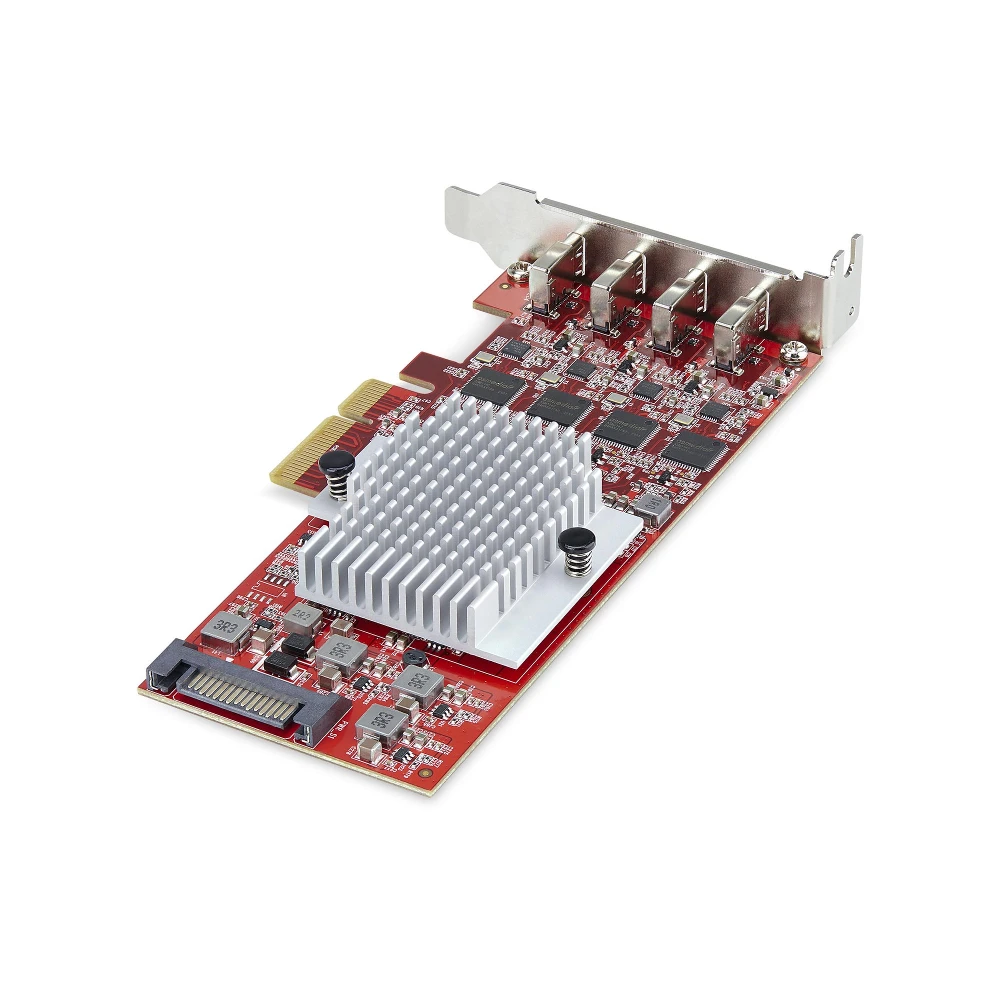

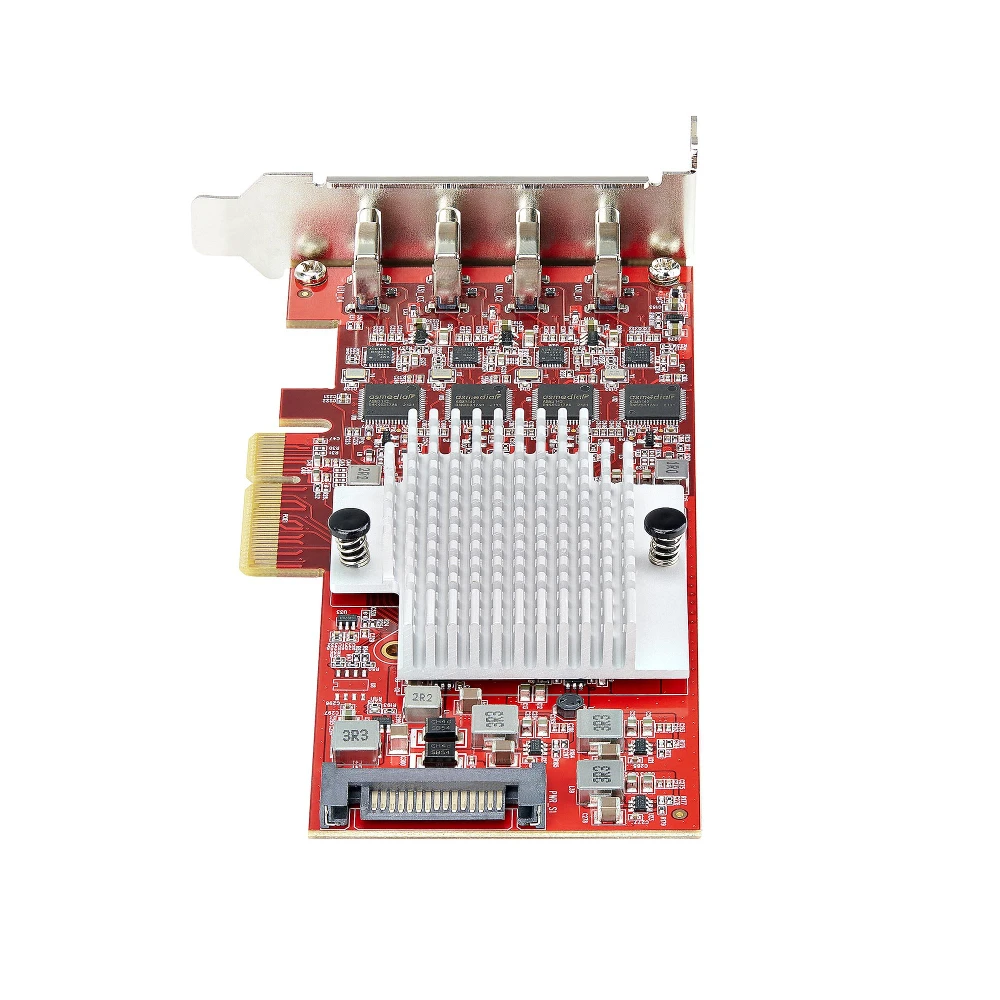

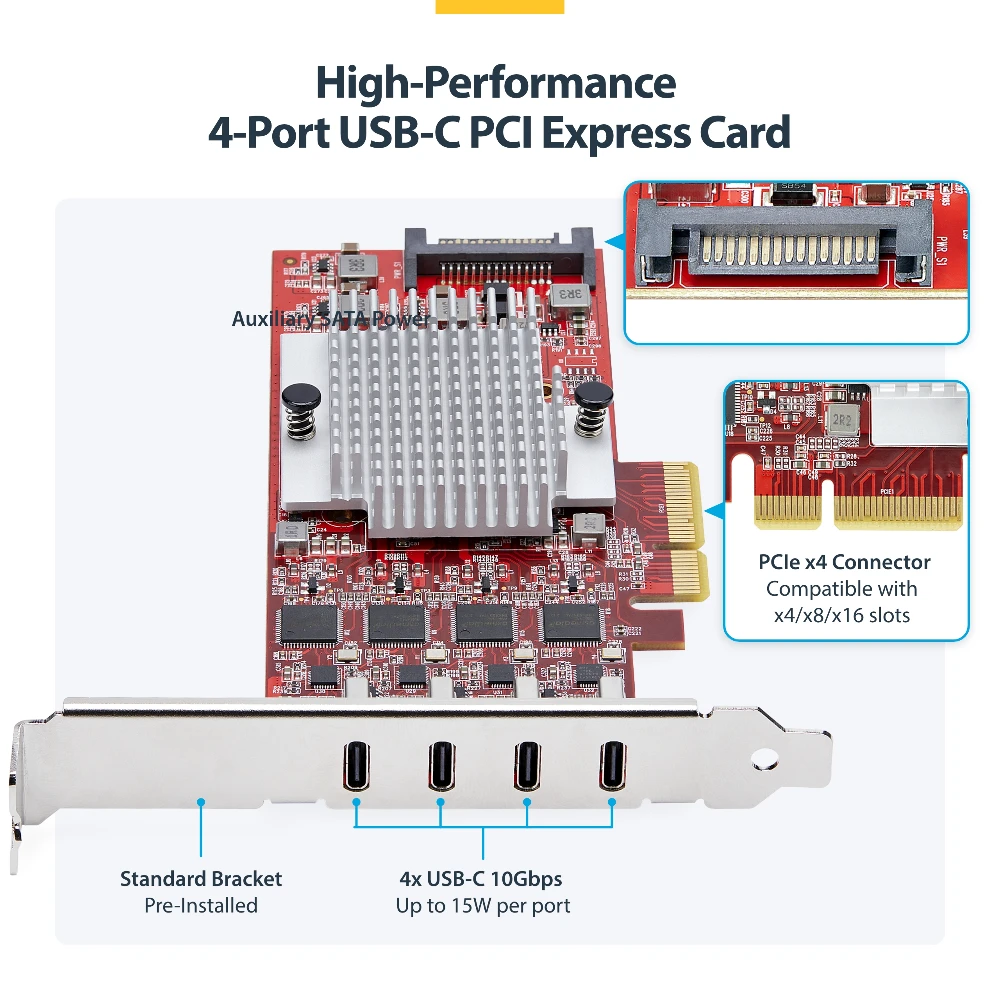

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.

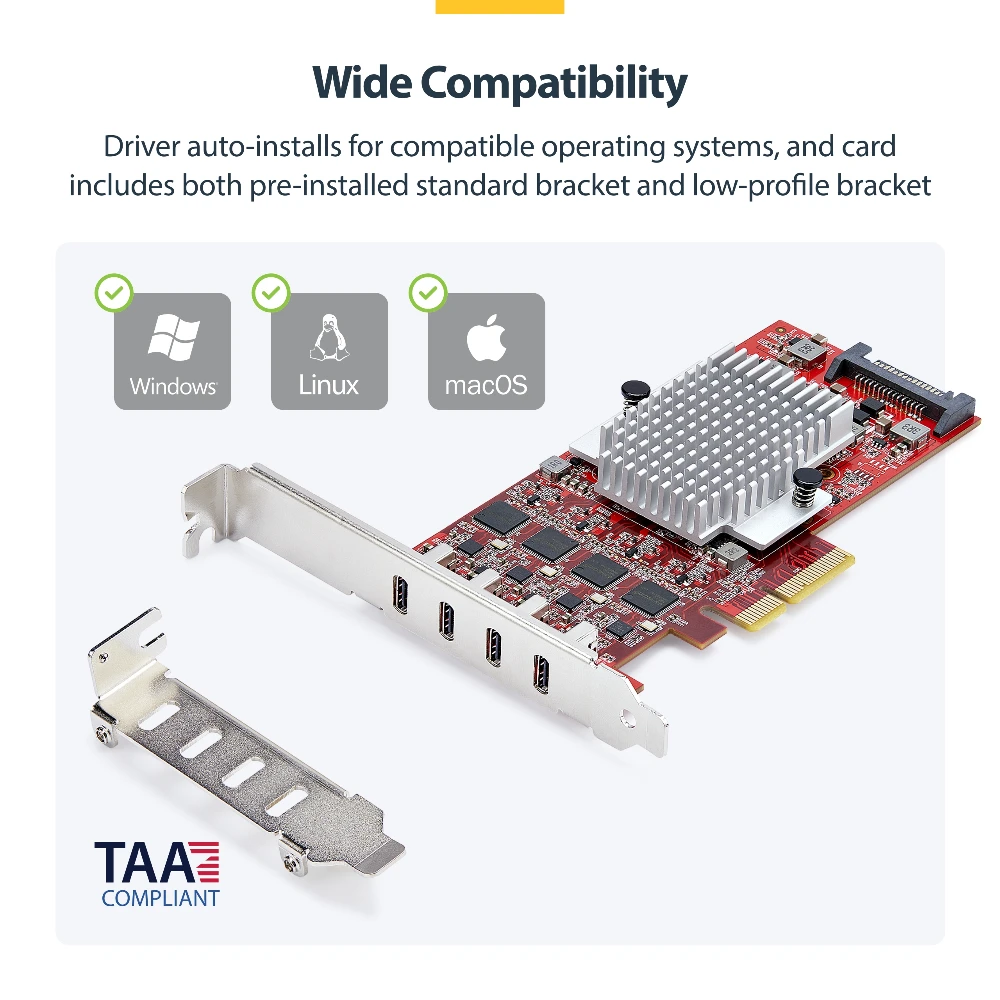

Compatibility

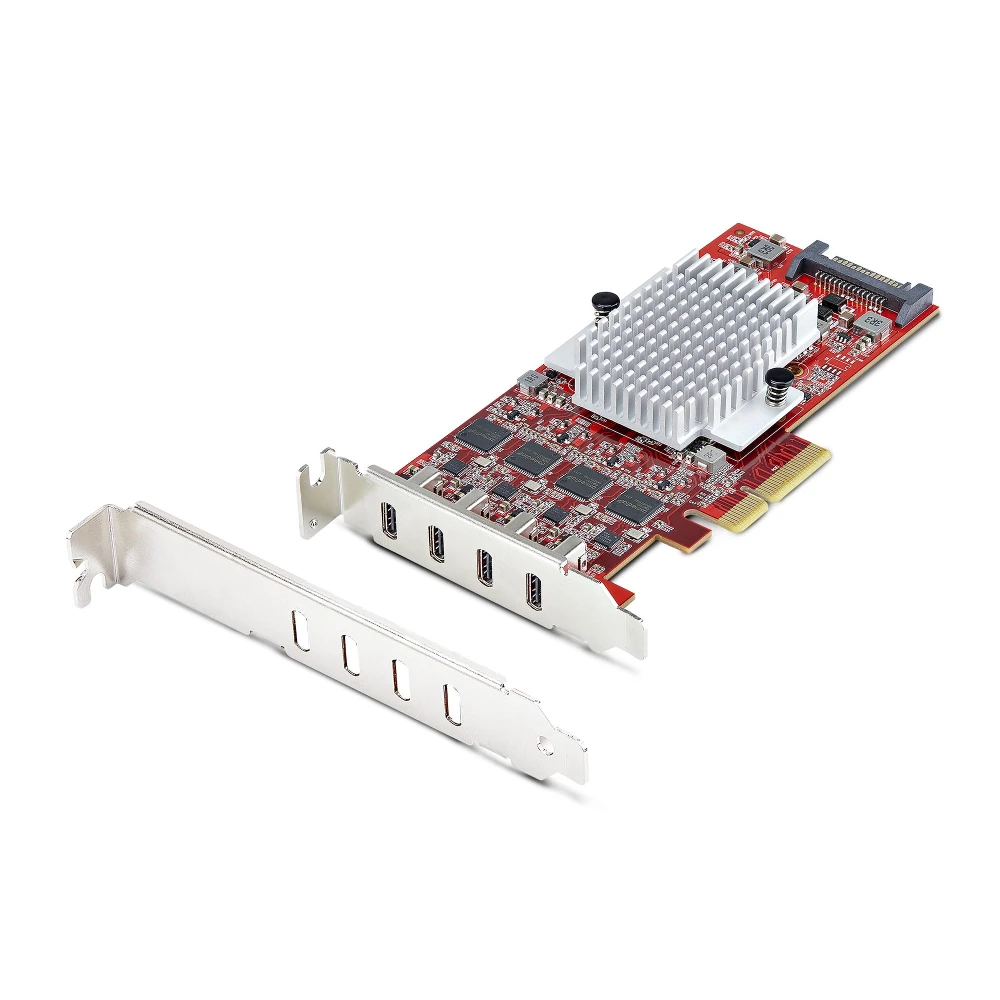

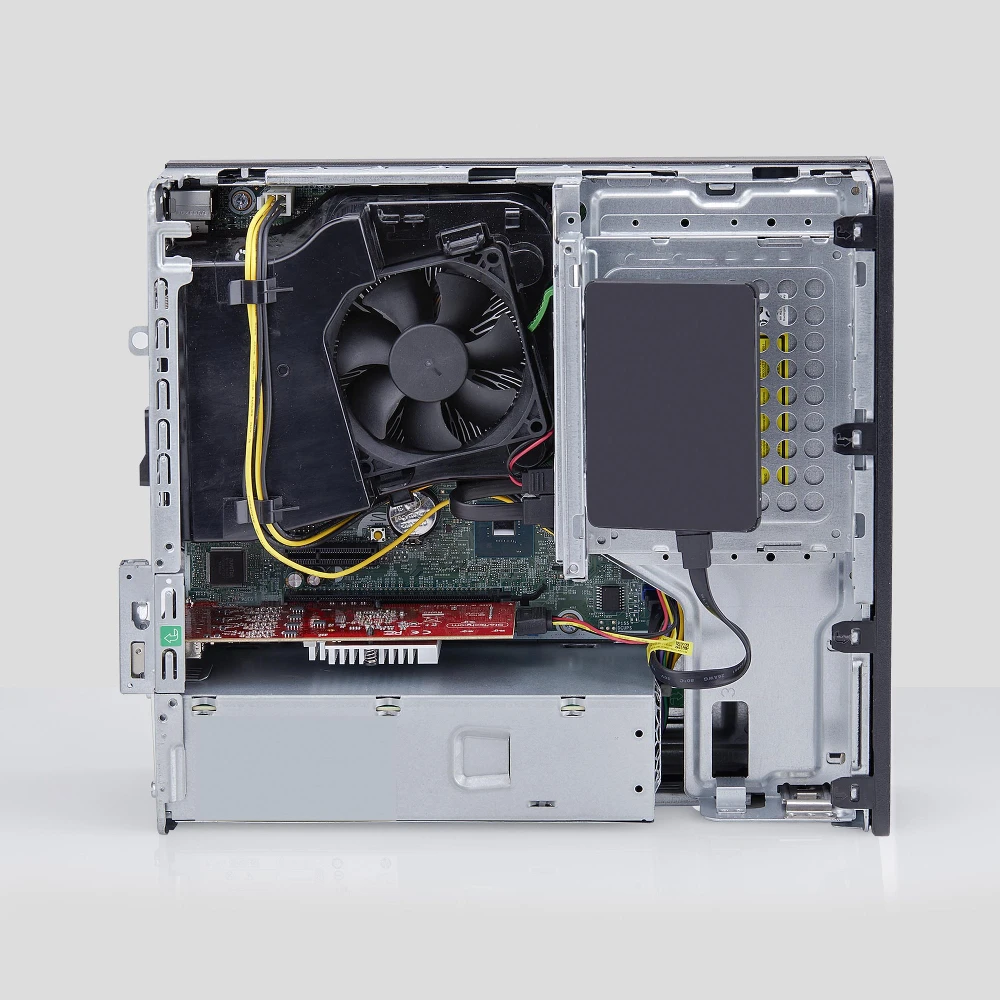

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed low-profile bracket and includes a standard profile bracket for maximum compatibility.
