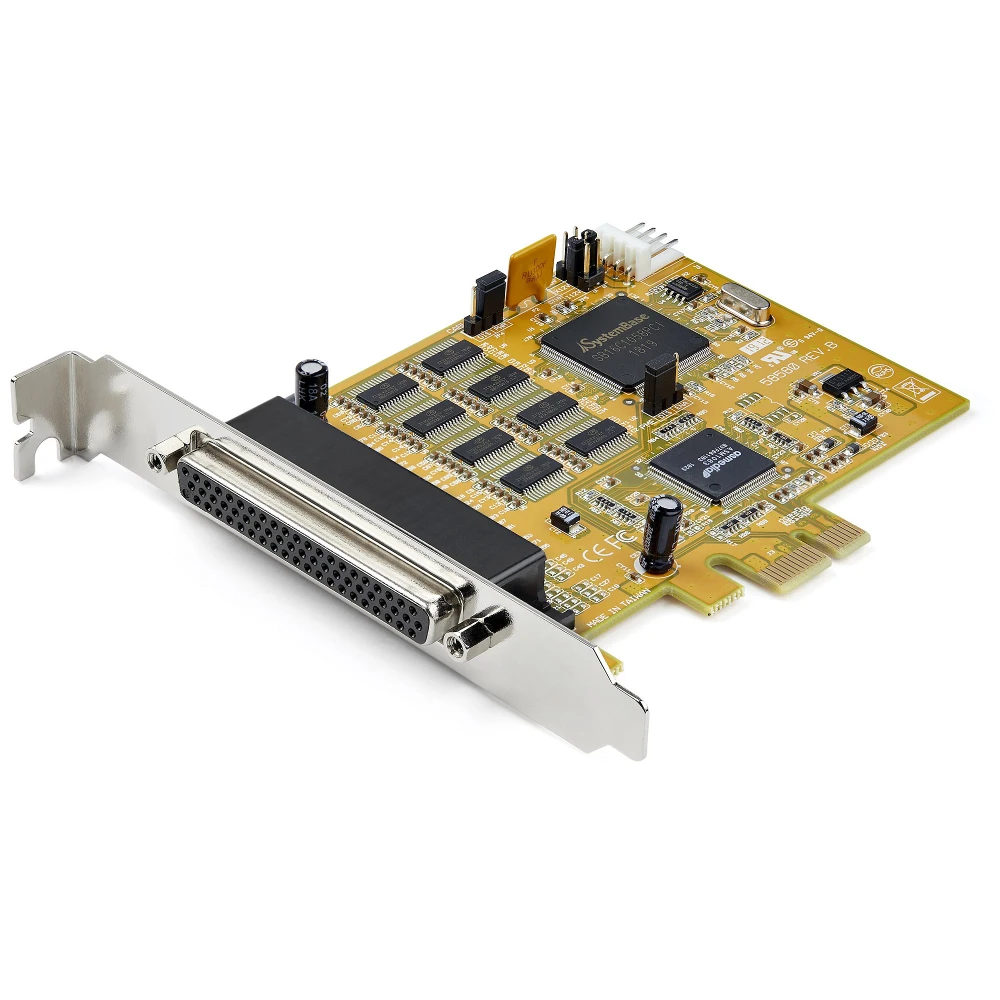

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Multiport Serial DB9 Controller/Expansion Card - 15kV ESD Protection - Windows & Linux (PEX8S1050)
StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Multiport Serial DB9 Controller/Expansion Card - 15kV ESD Protection - Windows & Linux. Host interface: PCIe, Output interface: Serial, Serial interface type: RS-232. Product colour: Yellow, Maximum cable length: 0.5 m, Mean time between failures (MTBF): 160013 h. Chipset: ASMedia - ASM1083, System Base - SB16C1058PCI, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows.... Width: 16 mm, Depth: 105 mm, Height: 120 mm
- 8 port PCIe DB9 serial controller card w/16C1050 UART; Systembase SB16C1058PCI w/bi-directional RS232 speeds up to 921.6Kbps per port; 256 byte FIFO; 15kV ESD | Upgraded version of our popular card PEX8S952 - PCI Express RS232 serial adapter card w/ Pwr output of 12v/5v/none on DB9 pin 9; Max. 3A total - Expansion card w/ 18" DB62 to 8x DB9 breakout cable incl; Hex nuts incl. for opt. screw/nut DB9 interface - Win XP and up/Linux - PLCs/control/automation/medical/scanner - Lifetime warranty
8-Port | PCI-Express | DB9 | RS-232 | 16C1050 UART | 15kV ESD Protection
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports

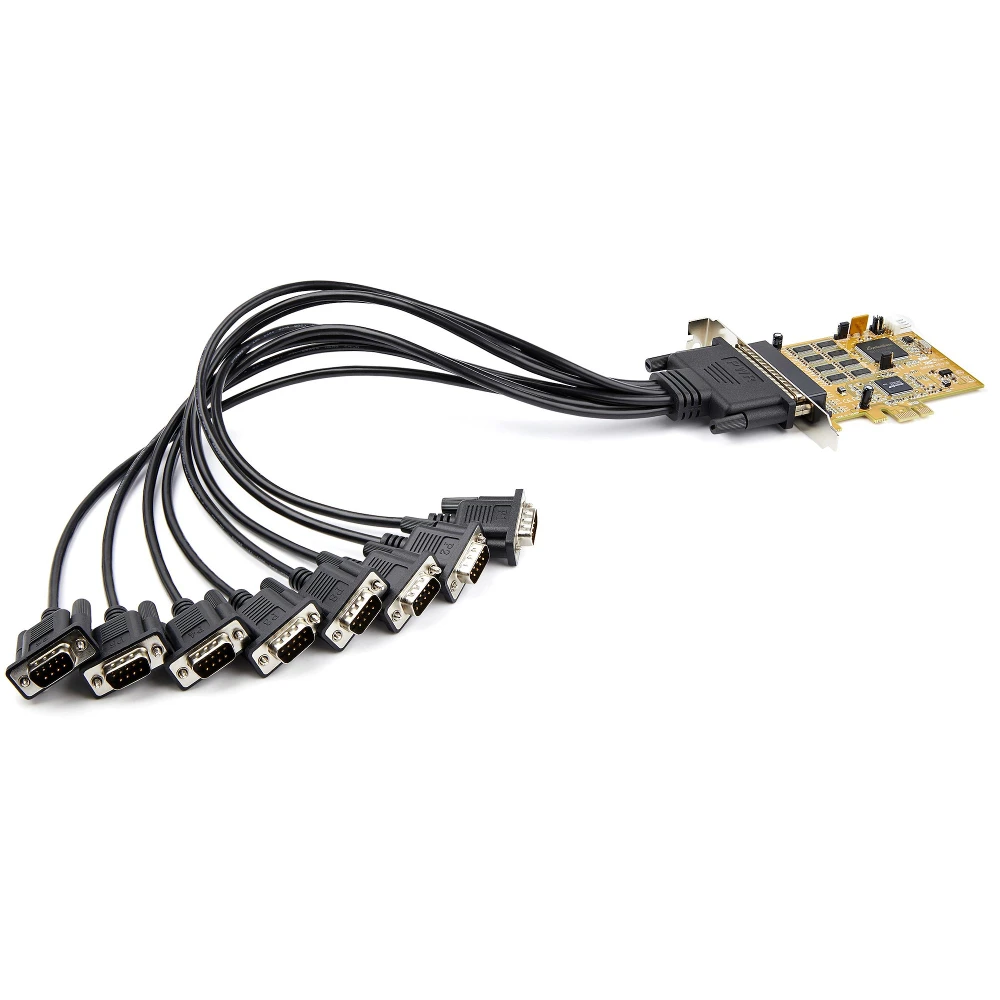

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.
PEX8S1050?is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage

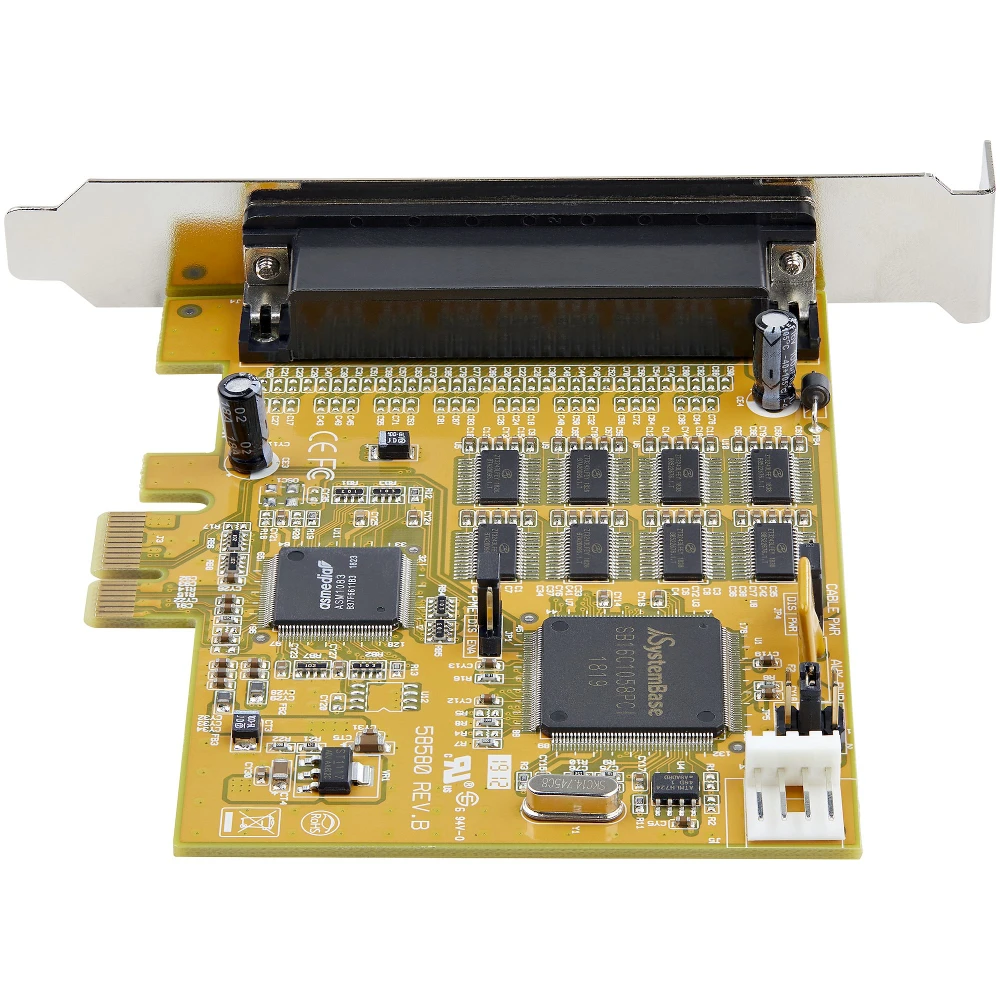

- 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer

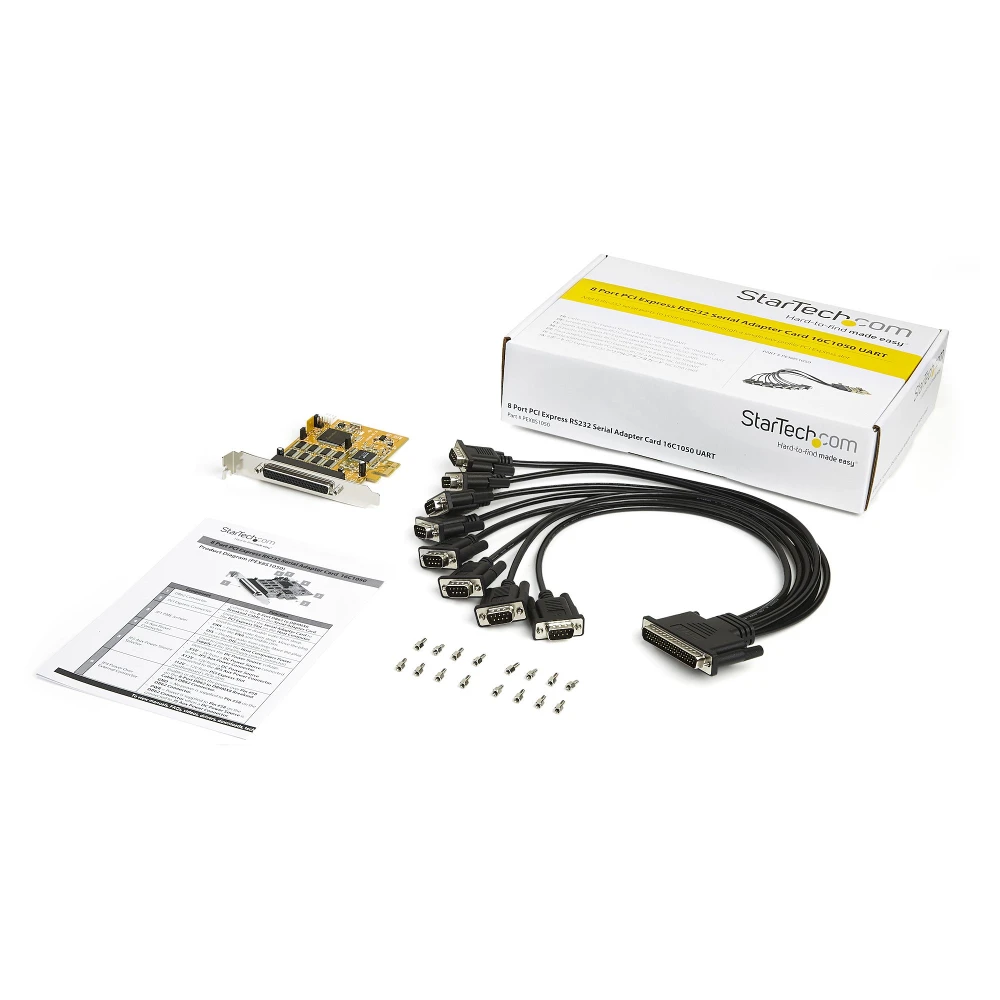

- OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface
- COMPATABILITY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For standard profile desktop/servers
