StarTech.com 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux (PEX4S953LP)
StarTech.com 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows/Linux. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.1. Product colour: Green, Mean time between failures (MTBF): 214358 h, Certification: CE, FCC. Chipset: Asix AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 75 mm, Depth: 63 mm, Height: 18 mm

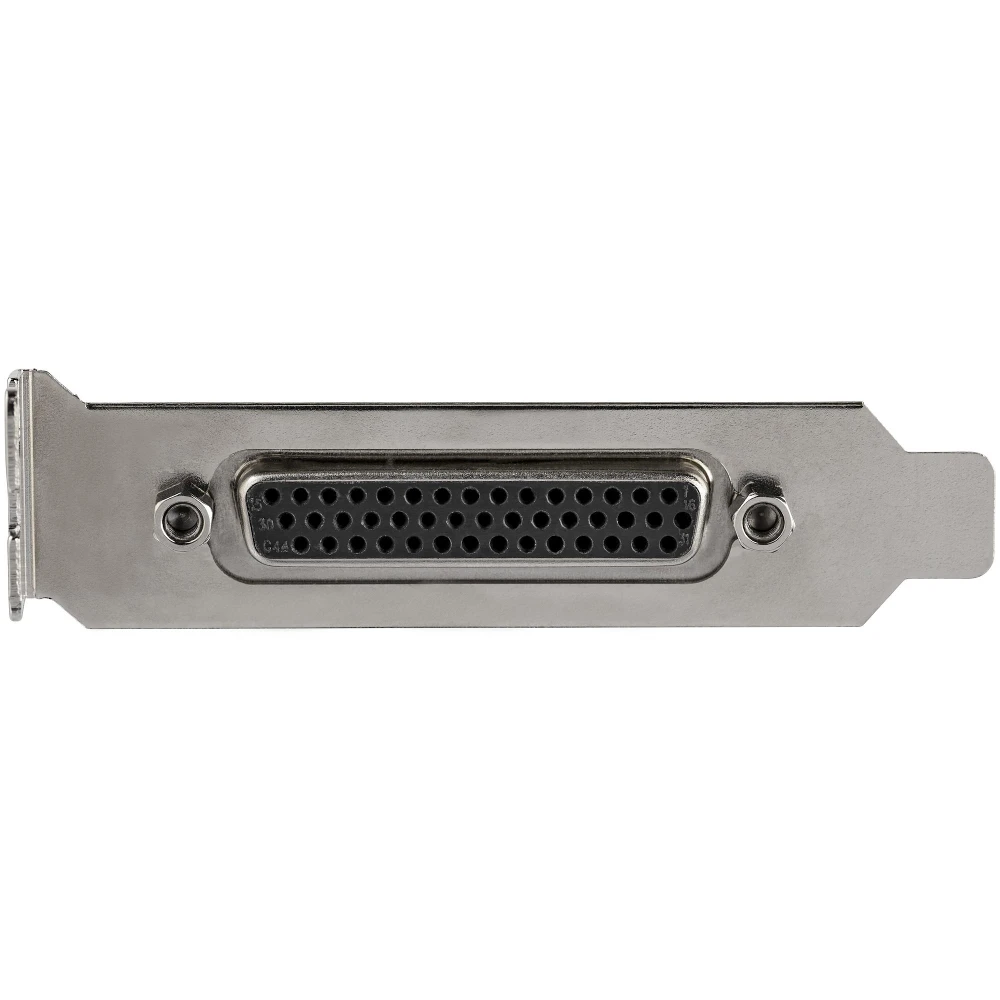

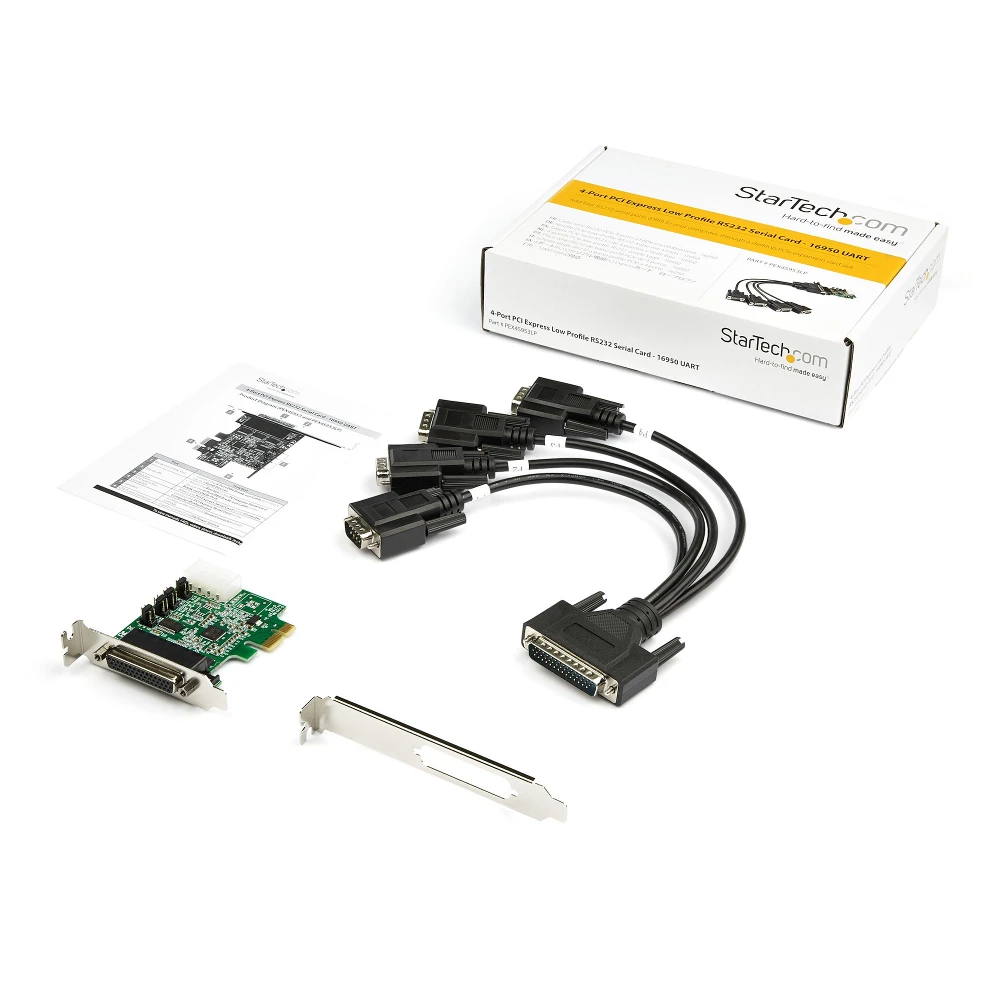

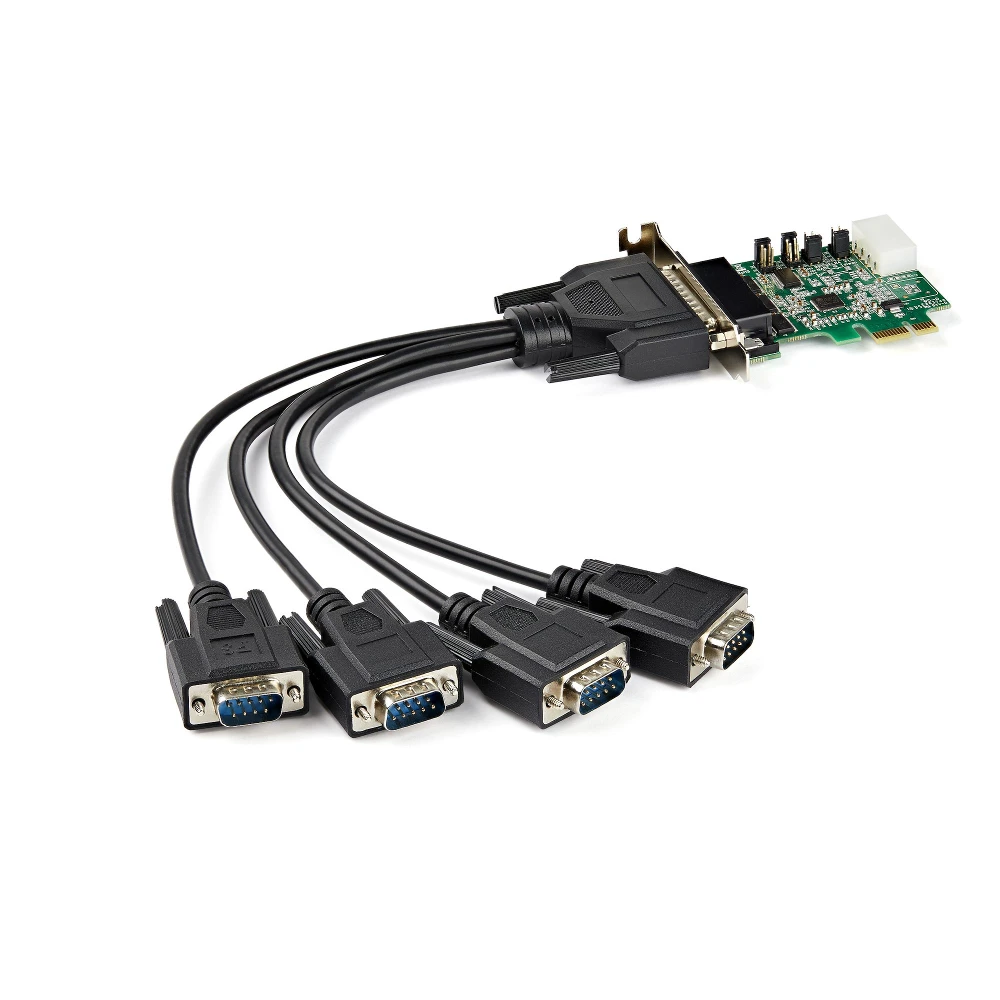

- 4 port DB9 serial controller card w/16950 UART using ASIX AX99100 w/bi-directional RS232 speeds up to 921.6Kbps per port; avail. 256 byte FIFO and 9th data bit | Upgraded version of our popular card PEX4S952LP - PCI Express RS232 serial adapter card w/power output of 12v/5v/none on DB9 pin 9 w/up to 2A - Expansion card pre-installed w/low profile bracket (standard bracket incl); DB44 to 4x DB9 breakout cable incl. - Windows XP and up/Linux - Use in PLCs/automation/scanner - Lifetime warranty
PCI Express to Serial Adapter | 921.6Kbps | Windows and Linux Compatible

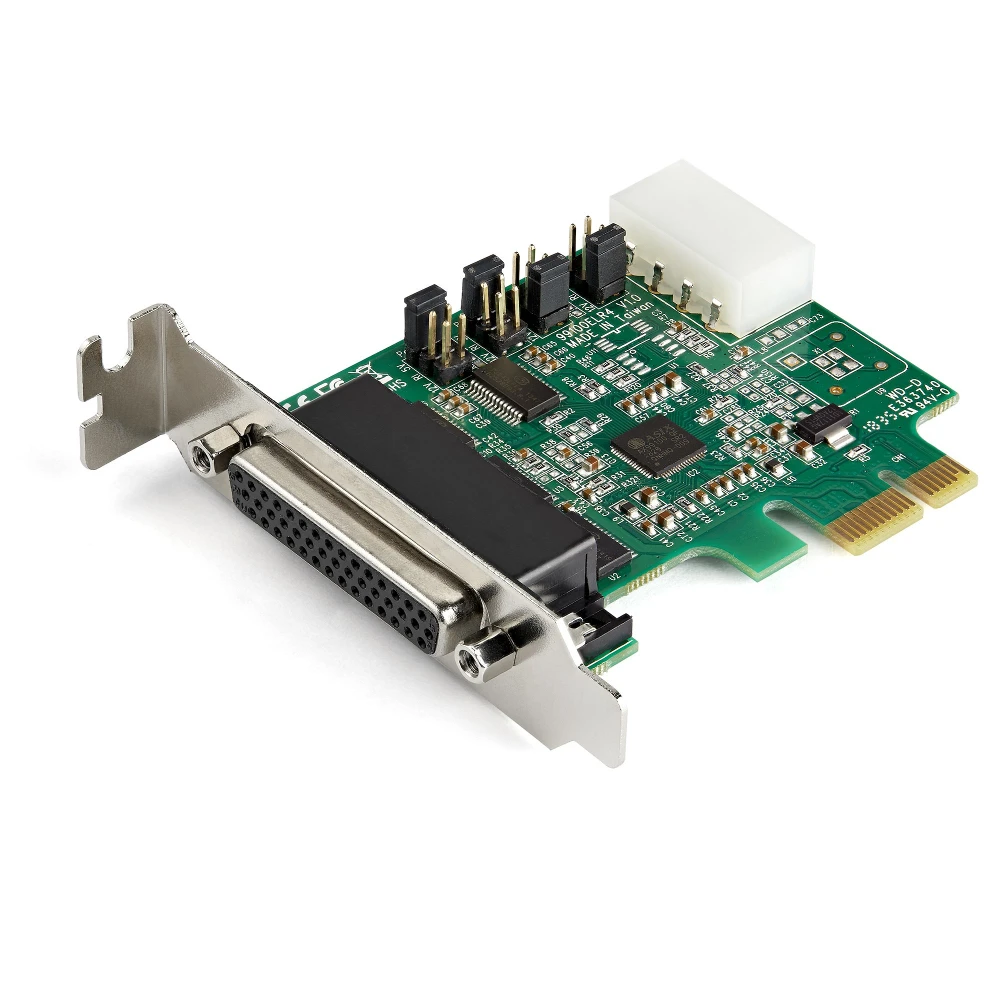

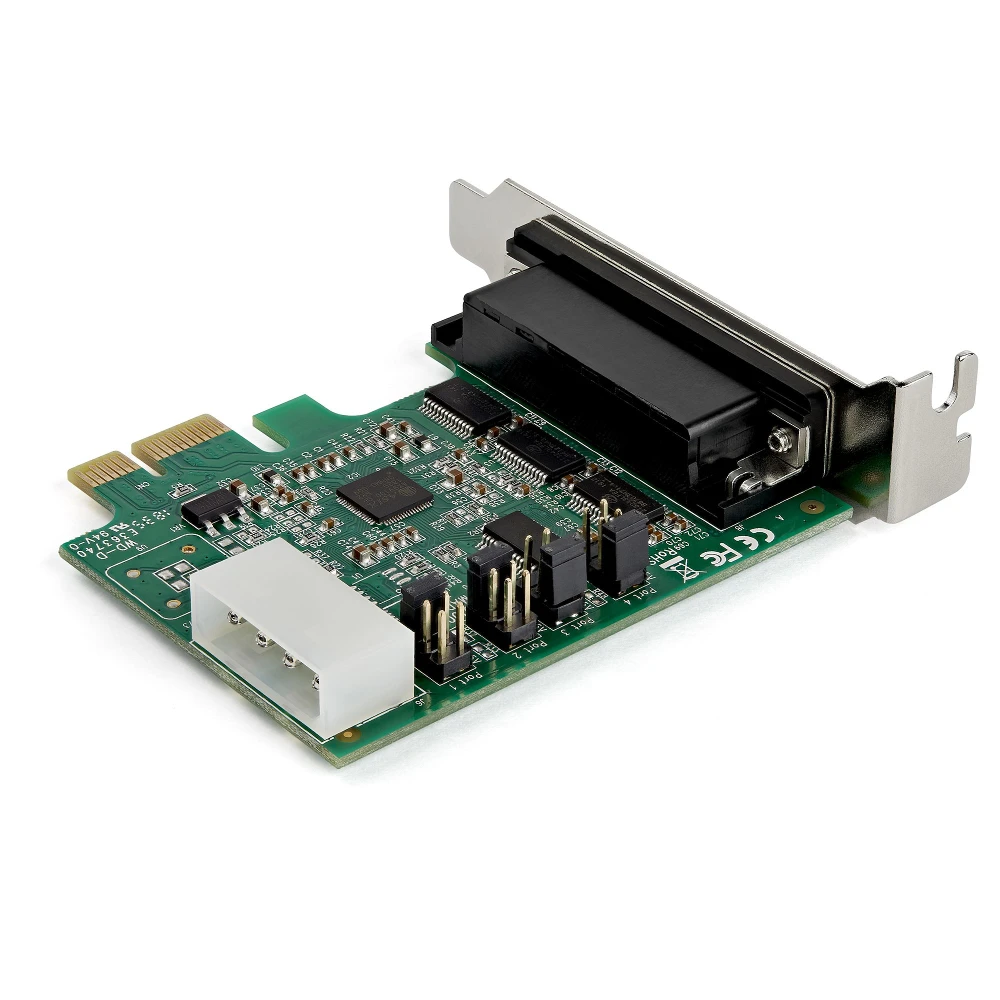

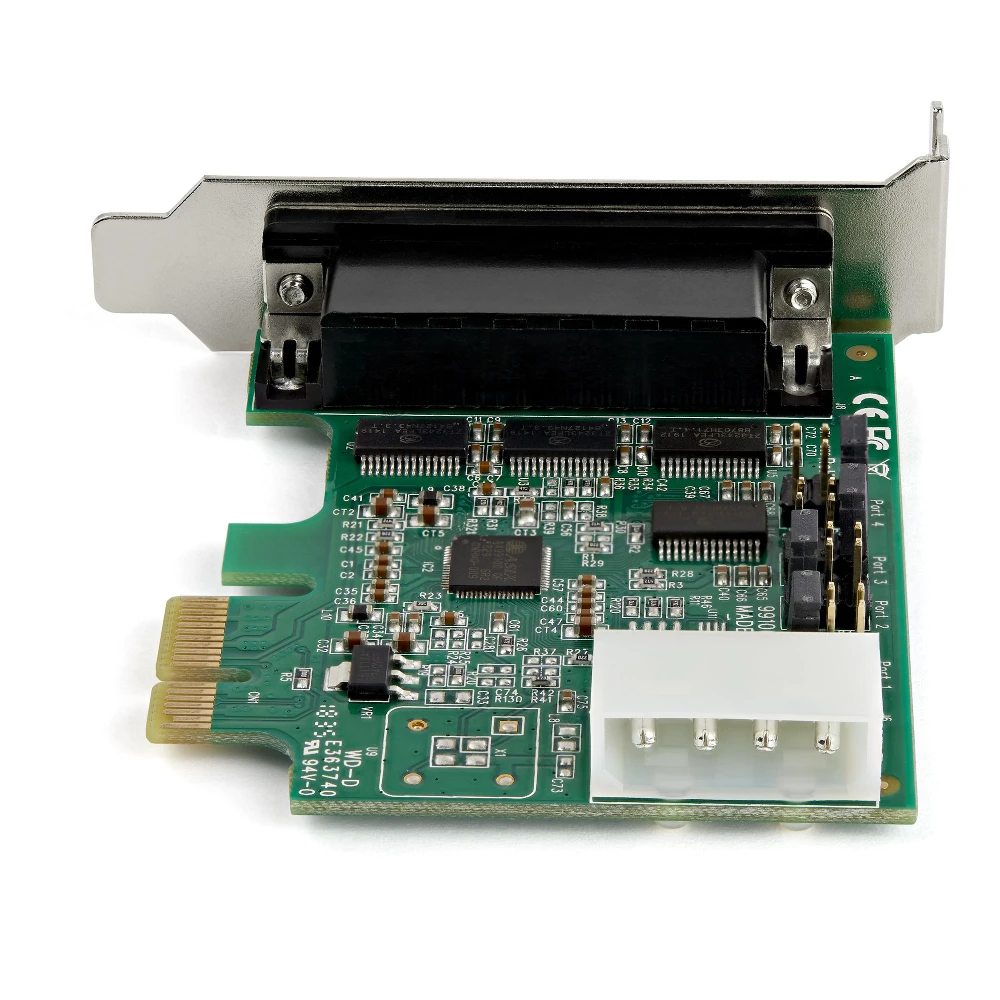

This?PCI Express RS232 serial adapter card?lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. The?4 port PCIe serial card?enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.?
Maximum Compatibility?
With broad OS support, including for Windows and Linux, this?PCI E serial card?is easy to integrate into mixed environments. The card comes pre-configured with low-profile brackets and includes?optional full-profile brackets, so installation is easy regardless of the case form factor. This?card is a direct?replacement for PEX4S952LP.??
Experience Optimal Technology?
This PCIe to serial adapter supports the following features:?
Compatible with industry-standard 16950 UART?
Supports max baud rate of up-to?921.6Kbps?

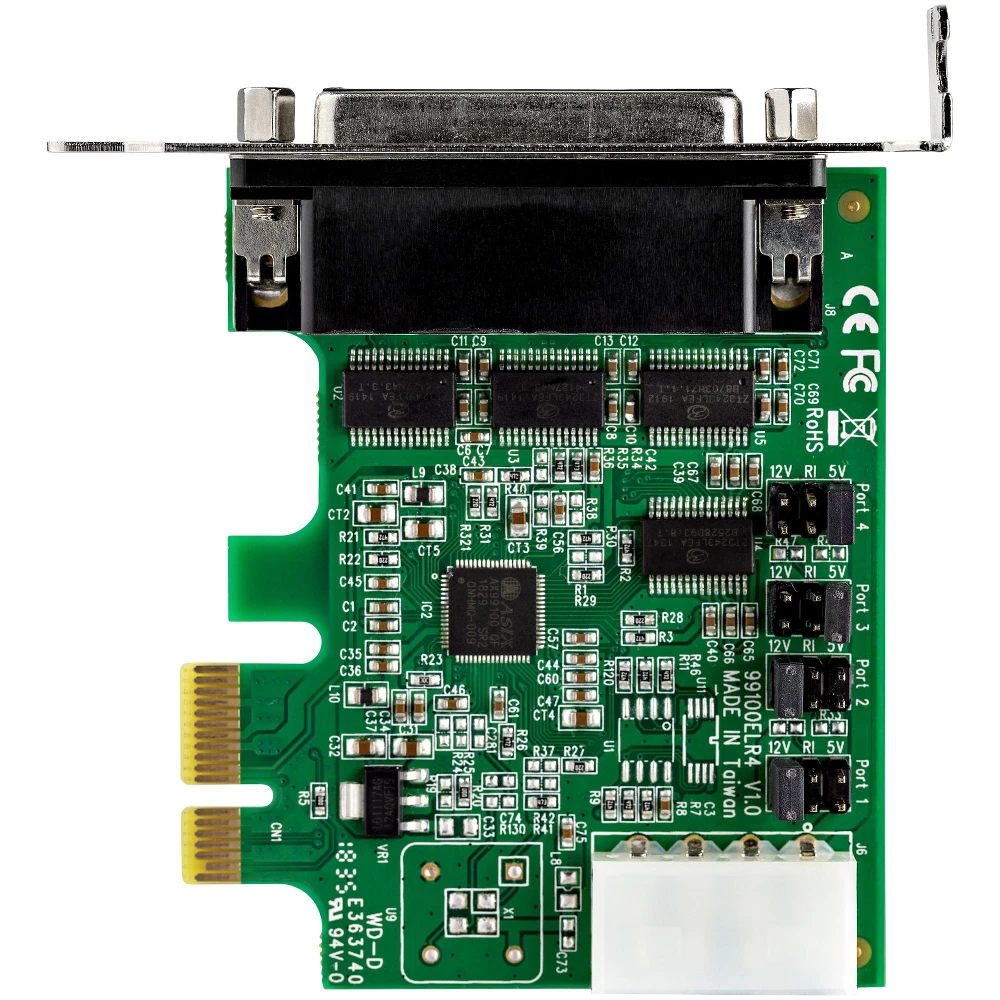

Provides 5/12V power output on Pin 9 when external power is connected?
256-byte?depth FIFO?cache?per transmitter and receiver?
Supports 9, 8, 7, 6, 5 data bits?(one per port)?
Asix?AX99100 chipset?
PCI Express?1.1?compliant?
The Choice of IT Pros Since 1985????
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both?pre?and post-sales.??
PEX4S03LP is backed by a StarTech.com?lifetime warranty and free lifetime technical support.?
The StarTech.com Advantage
- Install in home or office workstations
- Connect to automated self-service kiosks or ATM machines
- Connect in retail POS applications
- Connect serial printers and other legacy devices to modern computers
