SUPERMICRO Quote/1019D-FHN13TP-OTO-17

Cod: 8600301122 - EAN: 0672042359585
SUPERMICRO Quote/1019D-FHN13TP-OTO-17 SUPERMICRO Quote/1019D-FHN13TP-OTO-17
€ 2257.00
(VAT included)
Unavailable
Request information:

Product Info

Art. No.
  • 8600301122
Brand
  • Supermicro

Shipping fees
from €
Share:
FURY DDR4 2x32GB 3600MHz DIMM
FURY
DIMM
DDR4
NON ECC
64 GB

Product SKUs

SYS-1019D-FHN13TP
  • SuperServer 1019D-FHN13TP (Black)

Motherboard


Super X11SDW-8C-TP13F

Processor

CPU
  • Intel® Xeon® processor D-2146NT,
    CPU TDP support 80W
Cores / Cache
  • 8 Cores, 16 Threads

System Memory

Memory Capacity
  • Up to 512GB DDR4 ECC LRDIMM
  • Up to 256GB DDR4 ECC RDIMM
  • 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 L/RDIMM
  • Operating speed up to 2133MHz
DIMM Sizes
  • 128GB, 64GB, 32GB, 16GB
Memory Voltage
  • 1.2 V

On-Board Devices

Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps) ports via SoC controller
Network Controllers
  • Dual 10G SFP+ via SoC
  • Dual 10GBase-T via Intel X557
  • 8x 1GbE with Intel I350-AM4
  • Single 1GbE with Intel I210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • VGA via Aspeed AST2500 BMC

Input / Output

SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 9 RJ45 Gigabit Ethernet LAN ports
  • 2 RJ45 10GbE LAN ports
  • 2 10G SFP+ LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM via RJ45

System BIOS

BIOS Type
  • 128Mb SPI Flash with AMI BIOS

Management

Software

Chassis

Form Factor
  • 1U Rackmount
Model
  • CSE-513BTS-350WB

Dimensions and Weight

Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 15" (381mm)
Package
  • 6.9" (H) x 19.5" (W) x 22.4" (D)
Weight
  • Gross Weight: 25 lbs (11.34 kg)
  • Net Weight: 14 lbs (6.35 kg)
Available Colors
  • Black

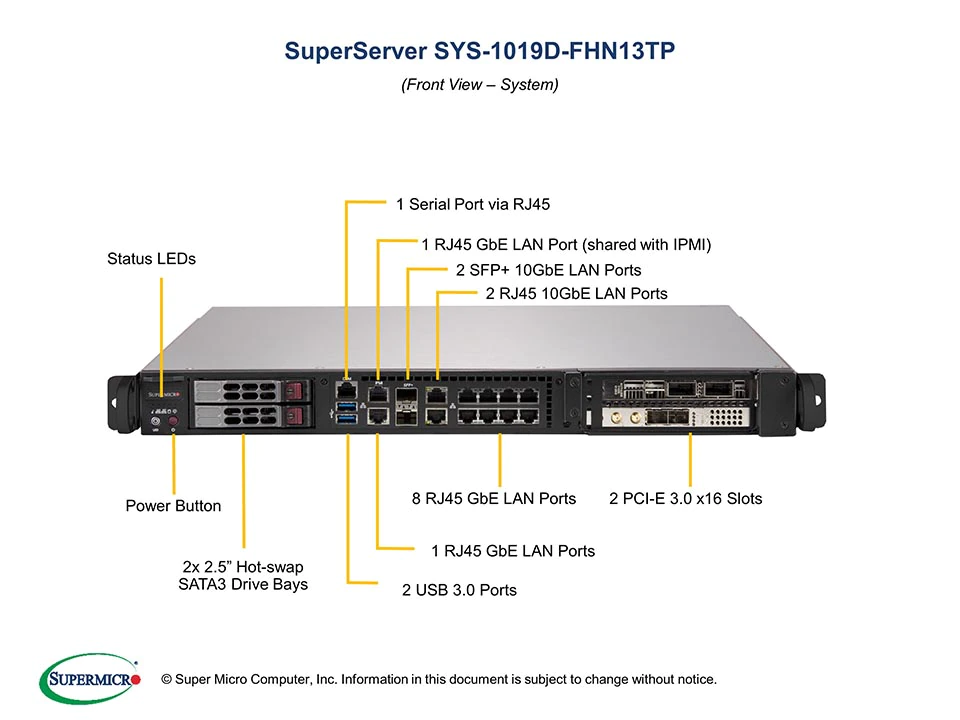

Front Panel

Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED

Expansion Slots

PCI-Express
  • 2 PCI-E 3.0 x16 (FHFL) slots
M.2
  • 1 M.2 M-Key SATA/PCI-E 3.0 x4, 22110
  • 1 M.2 E-Key PCI-E 3.0 x1, 2230
  • 1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242

Drive Bays

Hot-swap
  • 2 Hot-swap 2.5" drive bays
Internal
  • 2 Internal 2.5" SSD bays (optional)

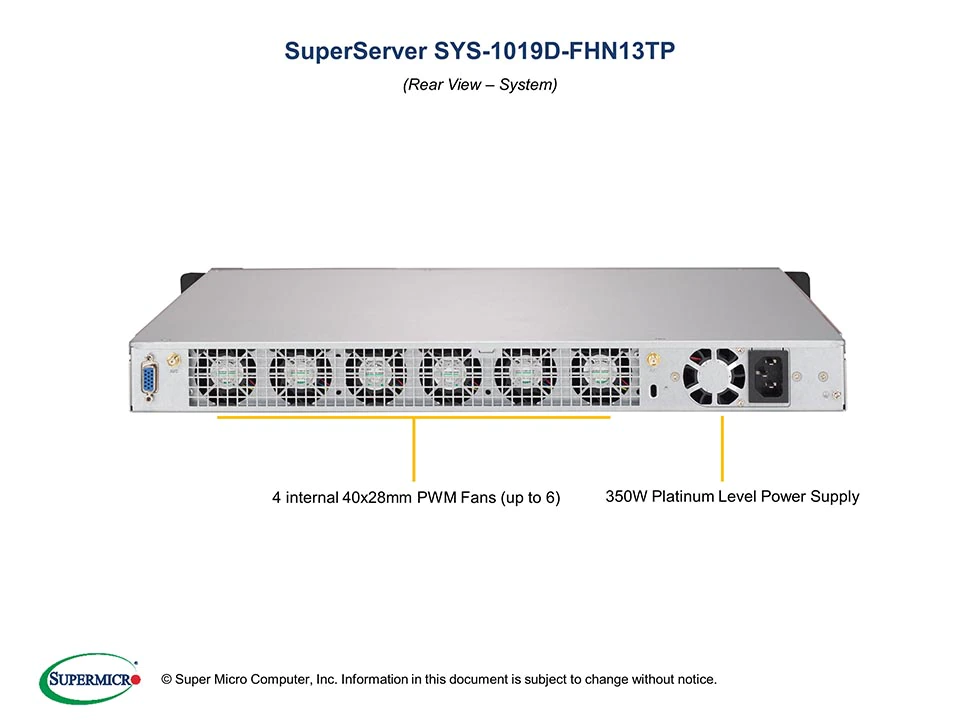

System Cooling

Fans
  • 4x 40x28mm PWM fans (up to 6)

Power Supply

350W AC power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz, 5.0-2.5 Amp
+5V
  • Max.: 15 Amp
  • Min.: 0.2 Amp
+5V standby
  • Max.: 3 Amp
  • Min.: 0 Amp
+12V
  • Max.: 29 Amp
  • Min.: 0.5 Amp
-12V
  • Max.: 0.2 Amp
  • Min.: 0 Amp
+3.3V
  • Max.: 12 Amp
  • Min.: 0.2 Amp
CertificationPlatinum Level Certified    Platinum Level Certified
  [ Test Report ]

Operating Environment / Compliance

RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 45°C (32°F to 113°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
