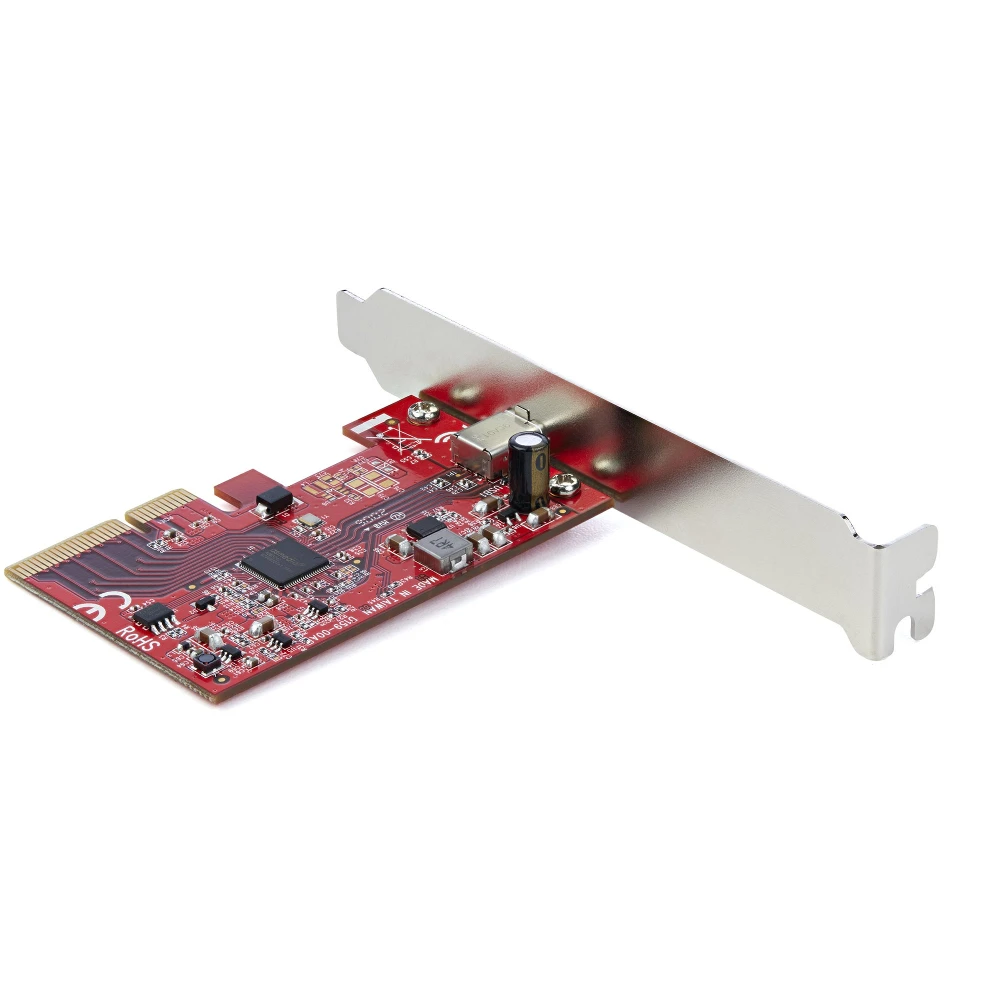

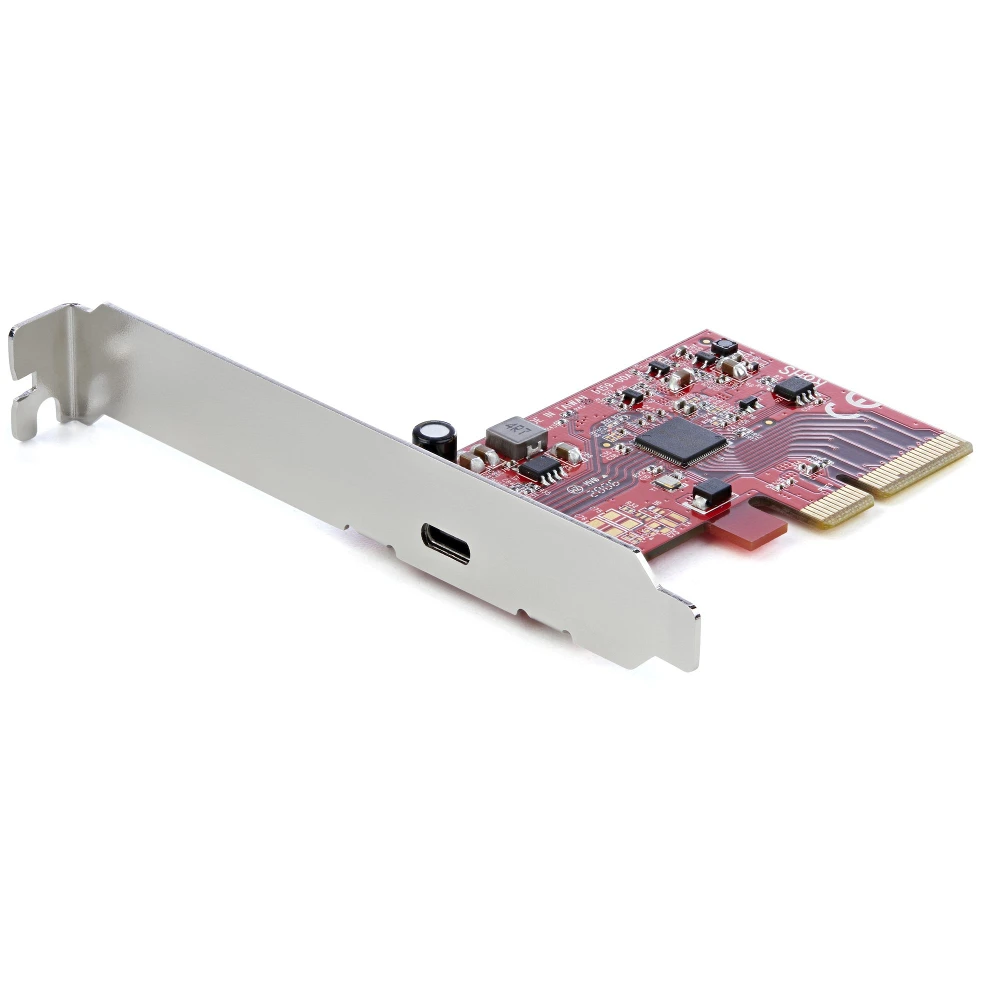

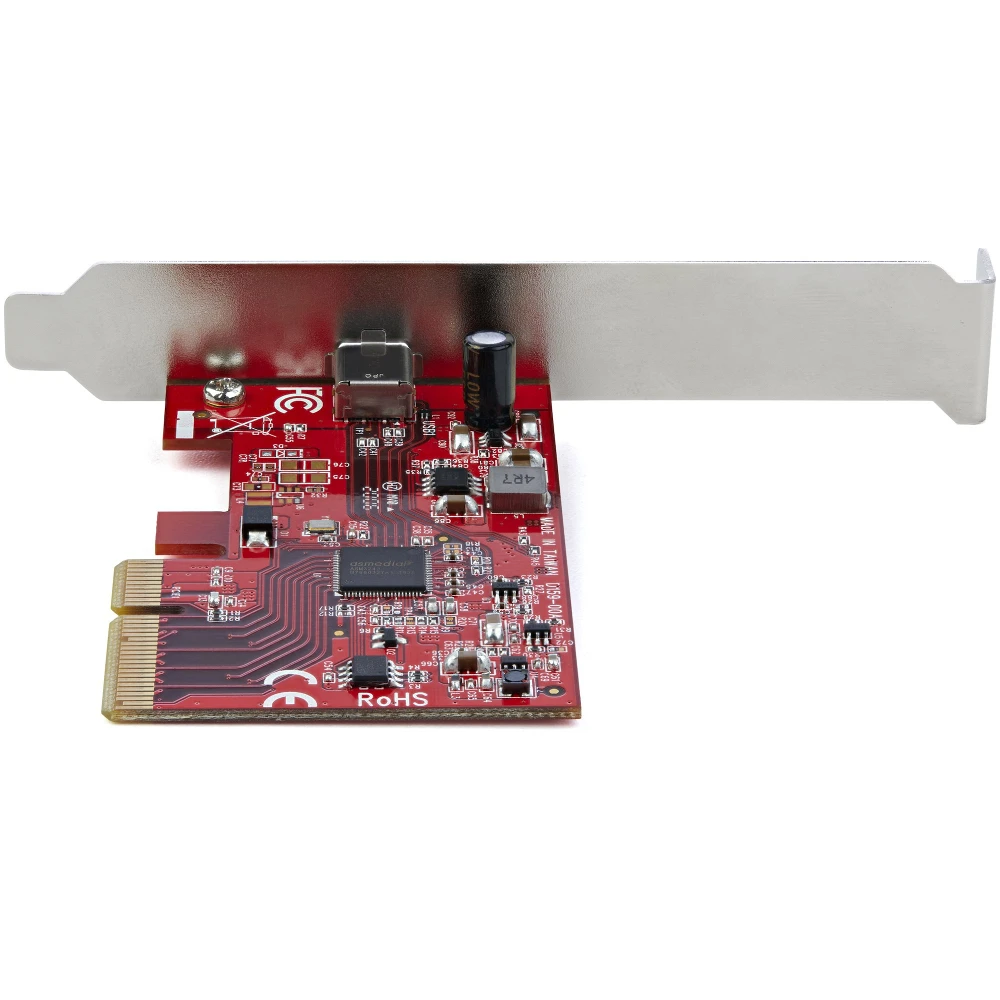

StarTech.com 1-Port USB 3.2 Gen 2x2 PCIe Card - USB-C SuperSpeed 20Gbps PCI Express 3.0 x4 Host Controller Card - USB Type-C PCIe Add-On Adapter Card - Expansion Card - Windows & Linux (PEXUSB321C)
StarTech.com 1-Port USB 3.2 Gen 2x2 PCIe Card - USB-C SuperSpeed 20Gbps PCI Express 3.0 x4 Host Controller Card - USB Type-C PCIe Add-On Adapter Card - Expansion Card - Windows & Linux. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCIe 3.0. Product colour: Red, Mean time between failures (MTBF): 3126209 h. Chipset: ASMedia - ASM3242, Data transfer rate (max): 20 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur,..., Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019. Width: 80 mm, Depth: 51 mm, Height: 22 mm
- USB 3.2 Gen 2x2 PCIe card has 1x USB Type-C port supporting SuperSpeed 20Gbps | Host controller card with ASMedia ASM3242 - USB-C PCI Express expansion card supports Multiple INs for max bandwidth w/mixed-speed devices - Adapter card w/UASP support optimizes USB performance w/ SSDs/HDDs/NVMe drives - Up to 15W of power - Install add-on card in full or low-profile PCI-e 3.0 x4 slot | Win/Linux/macOS w/auto drivers on Windows 8 and up | Supports all older USB 3.1/3.0/2.0 devices - StarTech.com 2-year warranty
USB 3.2 Gen 2x2 (20 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-C
This PCIe USB 3.2 Gen 2x2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding a USB-C (20Gbps) port.
Add a 20 Gbps USB Type-C Port to Your Desktop Computer
The controller card enables you to connect USB-C Gen 2x2 (20 Gbps) devices to your desktop computer. The USB-C port is ideal for connecting USB devices such as external hard drives and solid state drives or charging and syncing your mobile devices. The USB-C port provides up to 15W (5V/3A) of power and is backward compatible with USB 3.2 Gen 2 (10 Gbps) and USB 3.2 Gen 1 (5 Gbps) devices.
Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.0 and USB 3.1 (5 Gbps).
SuperSpeed USB 3.2 Gen 2x2 (20 Gbps) Performance
The USB 3.2 Gen 2x2 card features an ASMedia ASM3242 host controller that utilizes x4 lanes of the PCIe 3.0 bus, making the card capable of speeds up to 20Gbps and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller card supports Multiple INs to reduce bandwidth loss when multiple devices are connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.
Wide Installation Compatibility

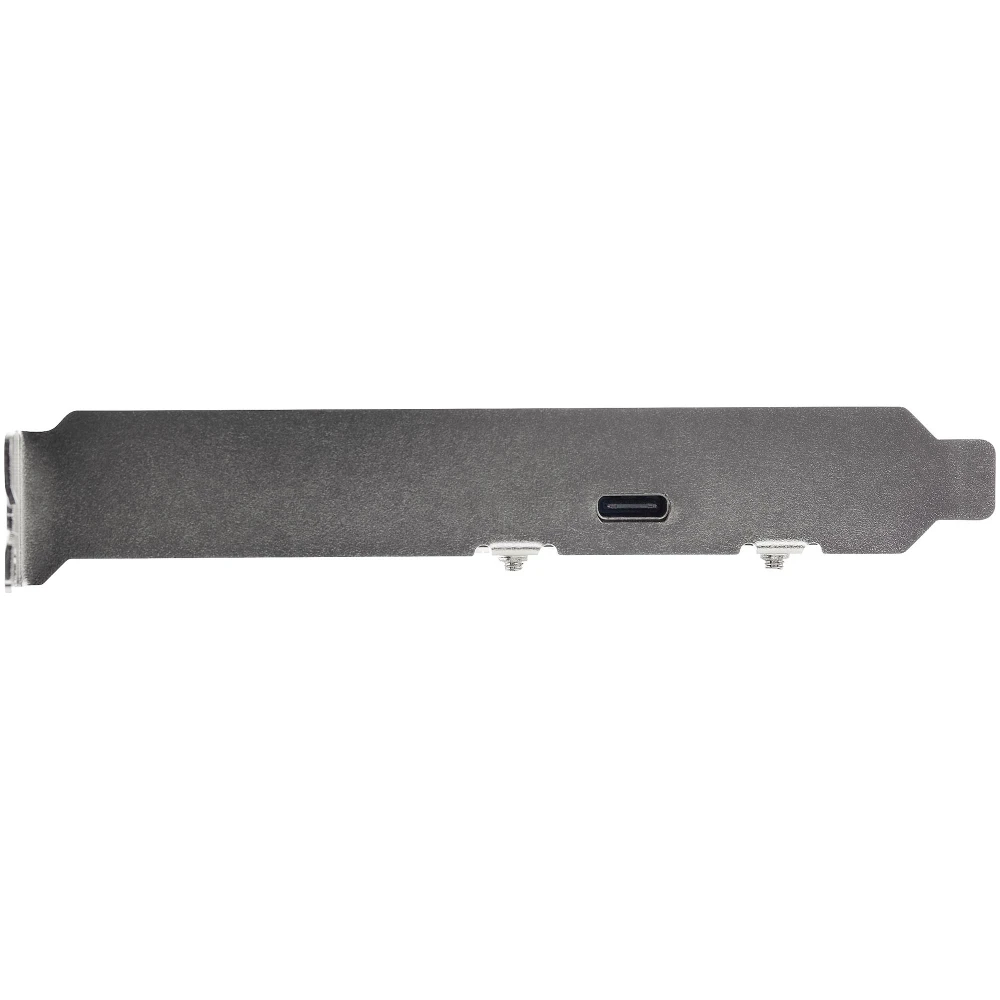

This add-on card includes both full-profile and low-profile installation brackets ensuring you can install it into either a full or low-profile PCIe 3.0 x4 slot (backward compatible w/PCIe 2.0). For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.1/3.0/2.0 devices
PEXUSB321C is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
The StarTech.com Advantage
- HIGH PERFORMANCE: Add 1x USB-C SuperSpeed 20Gbps port to your desktop PC with this USB 3.2 Gen 2x2 PCIe Card; Expansion card provides up to 15W (5V @ 3A) to power & charge devices
- FULL USB 3.2 GEN 2X2 SPEEDS: Featuring the ASMedia ASM3242 host controller using x4 lanes of PCIe 3.0, this card is fully capable of speeds up to 20Gbps enabling fast access to high-performance devices like NVMe drives and SSDs
- MAXIMIZED USB PERFORMANCE: USB Type-C PCI Express card supports Multiple INs to reduce bandwidth loss when mix speed devices are connected to a Hub (hub must also support this feature); UASP support improves performance with storage devices
